Includes:

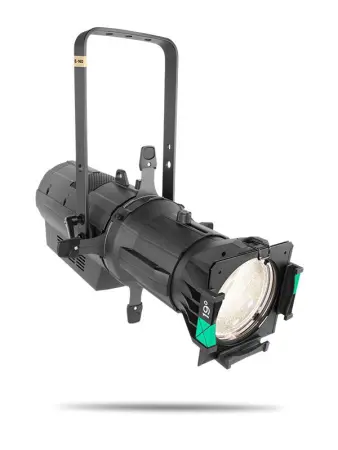

Ovation E-160WW
19 degree HD lens tube
Gel frame
Neutrik powerCON power cord


Ovation E-160WW is an energy saving wonder with an output that rivals a tungsten 575 W light source, yet draws less than 100 W of power. Dimming is extremely smooth, down to the very bottom of the curve. This virtually silent ellipsoidal projects a flat and even field of light for superior gobo projection. Control options include selectable PWM, RDM, and onboard dimming curve selections.

Features:

Warm white ERS style fixture with output similar to a tungsten 575 W source
Draws less than 100 W of power, a true electrical bill reducing fixture
Ultra smooth 16-bit dimming, and 8-bit dimming curves to complement any lighting scheme
Flat, even field of light for superior gobo projection
RDM (Remote Device Management) for added flexibility
Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
Virtually silent operation for use in studio and theater applications

Specifications:

Optical
Light Source: 1 LED (WW) 88 W, (2.3 A), 3031 K, 50,000 hours
life expectancy
Color Temperature (at full): 3031 K
CRI: 90
Beam Angle (w/14° lens): 8°
Beam Angle (w/19° lens): 12°
Beam Angle (w/26° lens): 16°
Beam Angle (w/36° lens): 20°
Beam Angle (w/50° lens): 31°
Beam Angle (w/15°–30° lens)(Narrow): 10°
Beam Angle (w/15°–30° lens)(Wide): 15°
Beam Angle (w/25°–50° lens)(Narrow): 18°
Beam Angle (w/25°–50° lens)(Wide): 24°
Field Angle (w/14° lens): 14°
Field Angle (w/19° lens): 18°
Field Angle (w/26° lens): 25°
Field Angle (w/36° lens): 33°
Field Angle (w/50° lens): 50°
Field Angle (w/15°–30° lens)(Narrow): 16°
Field Angle (w/15°–30° lens)(Wide): 29°
Field Angle (w/25°–50° lens)(Narrow): 28°
Field Angle (w/25°–50° lens)(Wide): 48°
Dimming Modes: 4
Illuminance (w/14° lens): 10,814 lux @ 5 m
Illuminance (w/19° lens): 6,253 lux @ 5 m
Illuminance (w/26° lens): 3,189 lux @ 5 m
Illuminance (w/36° lens): 1,918 lux @ 5 m
Illuminance (w/50° lens): 743 lux @ 5 m
Illuminance (w/15°–30° lens)(Narrow): 9,361 lux @ 5 m
Illuminance (w/15°–30° lens)(Wide): 2,947 lux @ 5 m
Illuminance (w/25°–50° lens)(Narrow): 2,719 lux @ 5 m
Illuminance (w/25°–50° lens)(Wide): 1,072 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz,
25,000 Hz

Dynamic Effects
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Manual
Strobe Rate: 0 to 29 Hz
Color Temperature Presets: Yes
Dim Modes: 4

Construction / Physical
Dimensions (fixture only): 19.49 x 11.22 x 19.17 in (495 x
285 x 487 mm)
Dimensions (w/14° lens extended): 28.74 x 11.22 x 19.17 in
(730 x 285 x 487 mm)
Dimensions (w/26° lens extended): 25.91 x 11.22 x 19.17 in
(658 x 285 x 487 mm)
Dimensions (w/15°–30° lens): 32.87 x 14.61 x 14.61 in (835 x
371 x 371 mm)
Dimensions (w/25°–50° lens): 27.17 x 14.61 x 14.61 in (690 x
371 x 371 mm)
Weight (fixture only): 14.2 lb (6.4 kg)
Weight (w/14° lens): 19.6 lb (8.89 kg)
Weight (w/26° lens): 18.4 lb (8.3 kg)

Connections
Power Connection: Edison (Local) plug to Neutrik
powerCON
Power Input: Neutrik powerCON
Power Output: Neutrik powerCON
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Weight (w/15°–30° lens): 28.2 lb (12.7 kg)
Weight (w/25°–50° lens): 25.8 lb (11.7 kg)
Exterior Color: Black
Gobo Size (Optional): “A”: 94 mm (outside), 79 mm (image),
2.5 mm (max. thickness)
Gobo Size (Optional): “B”: 94 mm (outside), 69 mm (image),
2.5 mm (max. thickness)
Accessory Holder/Gel Frame Size (14° lens): 7.5 in (191 mm)
Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50°
lens): 6.25 in (159 mm)
Accessory Holder/Gel Frame Size (15°–30° lens): 7.5 in (191
mm)
Accessory Holder/Gel Frame Size (25°–50° lens): 7.5 in (191
mm)

Control
Control Protocol: DMX
DMX Channels: 1, 2, 3 or 6
Modes/Personalities: 4 personalities (1, 2, 3, 6)

Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 15 units @ 120 V; 26 units @ 208 V; 28 units
@ 230 V
Power and Current: 103 W, 0.9 A @ 120 V, 60 Hz
Power and Current: 99 W, 0.5 A @ 208 V, 60 Hz
Power and Current: 102 W, 0.5 A @ 230 V, 50 Hz

Certifications / Qualifications
CE, MET
IP Rating: IP20, dry location

Chauvet Professional Ovation E160WW19 (Chauvet Pro OvationE160WW19)
