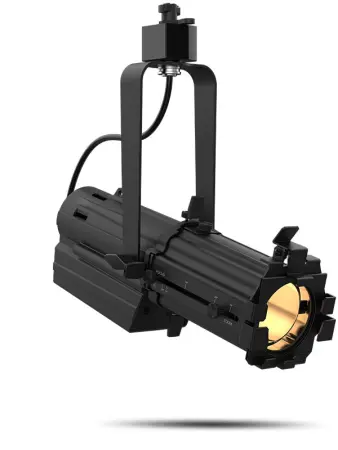

Ovation ETD-40WW is a best-in-class track-mountable 40W warm white LED ellipsoidal. This compact LED fixture has tremendous output with high CRI and creates a hard-edged beam for precise gobo projection. Designed for architectural and retail installations, this luminaire is equipped with fantastic zooming optics that provide a beam angle from 19° to 36° and can be adjusted with framing shutters to highlight desired areas.

AT A GLANCE
Compact LED ellipsoidal shines a hard-edged beam, perfect for gobo projection
Track-mountable to readily available track lighting rails
Tremendous output with high CRI
Highlight areas by altering the projected beam with framing shutters
Uses standard size E glass or metal gobos
Zooming optics provide a beam angle from 19° to 36°

SPECIFICATIONS
OPTICAL
Light Source: 1 LEDs (WW) 40 W, (600 mA), 50,000 hours life expectancy.
Color Temperature (at full): 3255 K
CRI: 93
TLCI: 92.2
Beam Angle (w/19-36° lens)(19°): 16°
Beam Angle (w/19-36° lens)(26°): 17°
Beam Angle (w/19-36° lens)(36°): 18°
Field Angle (w/19-36° lens)(19°): 19°
Field Angle (w/19-36° lens)(26°): 25°
Field Angle (w/19-36° lens)(36°): 33°
Lumens (w/19-36° lens)(19°): 1,327
Lumens (w/19-36° lens)(26°): 1,260
Lumens (w/19-36° lens)(36°): 1,050
Illuminance (w/19-36° lens)(19°): 784 lux @ 5 m
Illuminance (w/19-36° lens)(26°): 526 lux @ 5 m
Illuminance (w/19-36° lens)(36°): 352 lux @ 5 m

DYNAMIC EFFECTS
Dimmer: Electronic
Focus: Manual

CONSTRUCTION / PHYSICAL
Dimensions: 14.82 x 5.09 x 5.18 in (376.5 x 129.3 x 131.64 mm)
Weight: 3.4 lb (1.6 kg)
Exterior Color: Black
Housing Material: Aluminum die-cast
Gobo Size (Optional): Gobo size: 37.5 mm (outside), 20 mm (image, glass), 25 mm (image, steel), 1 mm (max. thickness)

CONNECTIONS
Power Connection: Track Type H
Cable Length (power): 1.17 ft (0.36 m)

ELECTRICAL
Input Voltage: 120 VAC, 60 Hz
Input Voltage: 230 VAC, 50 Hz
Power and Current: 37 W, 0.291 A @ 120 V, 60 Hz
Power and Current: 39 W, 0.17 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS
CE, MET
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED
Ovation ETD-40WW
Track Adaptor
Gobo holder size: 37.5 mm (outside), 20 mm (image, glass), 25 mm (image, steel), 1 mm (max. thickness)
Gel frame (2.75 in/70 mm accessories)
