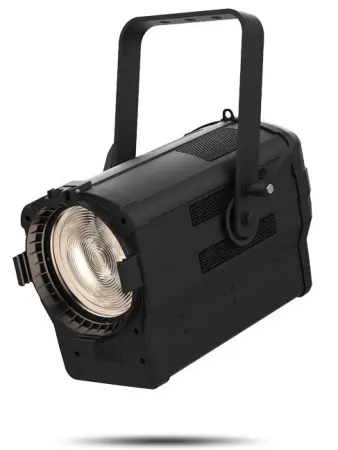

Ovation F-415VW
Ovation F-415VW is a 6” Fresnel style variable white fixture that utilizes our unique 6-color LED system. The unit projects a bright, beautifully soft field of light in nearly any temperature of white with high CRI and CQS making it ideal for theatres and TV studios. Each Color Temperature can be further adjusted for +/- green and a motorized zoom with a 27° – 68° field angle that allows you to add light where it is needed. The Color Temperature and hue along with zoom and output can be controlled via DMX or on-board dials. Adding to its versatility, the RDM-enabled unit enables a 28 V external battery operation and offers adjustable PWM for flicker-free use on camera.

AT A GLANCE
Variable white LED Fresnel lighting fixture for theatre, film and production

Soft and even field of light

Smooth, motorized zoom from 27° to 68°

Color Temperature Presets from 2800 K to 8000 K with high CRI and CQS

28 VDC power input via 3-pin XLR to power the fixture from an external battery pack

Beautiful 16-bit dimming

Proprietary LED engine delivers tremendous, equal output at all color temperatures

Easy to use on board control of color temperature, zoom and dimming

+/- Green adjustment via DMX or on-board control

Independent color control over the 6-color engine when a splash of color is needed

RDM (Remote Device Management) for added flexibility

Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

Virtually silent operation for use in studio and theatre applications


SPECIFICATIONS
OPTICAL
Light Source: 46 LEDs (4 red, 4 green, 6 blue, 6 R. Blue, 10 Orange, 16 Lime) 3 to 4 W, (1 A), 50,000 hours life expectancyColor Temperature (range): 2800 to 8000 KCRI: 89 to 93Beam Angle: 14° to 43°Field Angle: 27° to 68°Zoom Angle: 27° to 68°Lumens (27°) : 1,631
(68°) : 2,408Illuminance (27°) : 800 lux @ 5 m
(68°): 152 lux @ 5 mIlluminance drop percentage (fan silent) : 23%
(fan off) : 59%Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4000 Hz, 6,000 Hz, 25000 Hz
DYNAMIC EFFECTS
Dimmer: ElectronicShutter/Strobe: ElectronicZoom: MotorizedStrobe Rate: 0 to 27 HzStandalone Color Mixing: YesColor Temperature Presets: YesDim Modes: 4Built-in Automated Programs: No
CONSTRUCTION / PHYSICAL
Dimensions: 15.80 x 11.22 x 9.51 in (401.46 x 285 x 241.65 mm)Weight: 12.79 lb (5.8 kg)Exterior Color: BlackHousing Material: Aluminum alloy, Aluminum die-castAccessory Holder/Gel Frame Size: 6.25 in (158.75 mm)

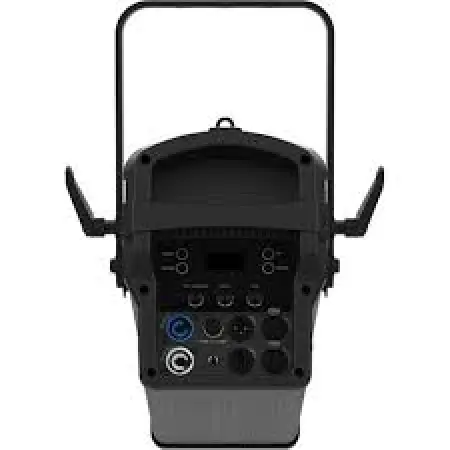

CONNECTIONS
Power Connection: Edison (Local) plug to Neutrik powerCON,
3-pin XLRPower Input: Neutrik powerCON
28 VDC, 3-pin XLRPower Output: Neutrik powerCONData Connectors: 5-pin XLRCable Length (power): 5 ft (1.5 m)


CONTROL
Control Protocol: DMX, RDMDMX Channels: 1, 4, 6, 7, 9, 13, 16 or 18Modes/Personalities: 8 personalities (1, 4, 6, 7, 9, 13, 16, 18)
ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)Input Voltage: 28 VDCPower Linking: 14 units @ 120 V; 24 units @ 208 V; 27 units @ 230 VPower and Current: 114 W, .93 A @ 120 V, 60 Hz
115 W, .56 A @ 208 V, 60 Hz
117 W, .50 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
CE, METIP Rating: IP20, dry locationTemperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
WHAT'S INCLUDED
Ovation F-415VWNeutrik powerCON power cordGel frame holder (6.25 in/158.75 mm accessories)
OPTIONAL ACCESSORIES
Professional Clamps: CTC-50HC, CTC-50HCNNeutrik® powerCON® cables3-pin or 5-pin DMX CablesColor Blending Filters: DF60X1D, DF20DOvation F 6.25″ Barndoor
ORDERING INFO
Item Code: 03031481

Chauvet Ovation F-415VW (Chauvet Pro Ovation F415VW)
