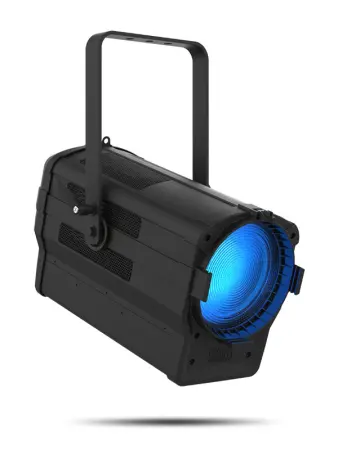

Ovation F-915FC is a high-power, full color mixing Fresnel style fixture that utilizes our RGBAL LED system. This fixture projects a bright beautifully soft, field of light from subtle pastels to punchy saturates and nearly any temperature of white. A motorized zoom with a 30° – 85° field angle allows you to add light where it is needed. Control of the virtual color wheel, zoom and output can be via DMX or on-board dials.

AT A GLANCE
Full Color LED (RGBAL) Fresnel lighting fixture for theatre, film and production
Soft and even field of light
Smooth, motorized zoom from 30° to 85°
Beautiful 16-bit dimming of master dimmer and individual colors
Easy to use on board control of color, zoom and dimming
Virtual Color wheel with color matched to popular gel colors
Color Temperature Presets from 2800 K to 6500 K
RDM (Remote Device Management) for added flexibility
Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
Virtually silent operation for use in studio and theatre applications

SPECIFICATIONS
OPTICAL
Light Source: 89 LEDs (18 red, 18 green, 16 blue, 16 amber, 21 lime) 3 W, (1.13 A), 3698 K, 50,000 hours life expectancy
Color Temperature (range): 2800 to 6500 KCRI (3200 K): 90
Beam Angle: 17° to 54°
Field Angle: 30° to 85°
Zoom Angle: 30° to 85°
Lumens (30°): 4,294
Lumens (73°): 6,661
Illuminance (30°): 1,980 lux @ 5 m
Illuminance (85°): 433 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

DYNAMIC EFFECTS
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 27 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL
Dimensions: 22.41 x 12.59 x 10.82 in (569.44x 320 x 275 mm)
Weight: 19 lb (8.6kg)
Exterior Color: Black
Housing Material: Aluminum alloy, Aluminum die-cast

CONNECTIONS
Power Connection: Edison (Local) plug to Neutrik powerCON
Power Input: Neutrik® powerCON®
Power Output: Neutrik® powerCON®
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)

CONTROL
Control Protocol: DMX, RDM
DMX Channels: 1, 3, 5, 7, 11, 13, 14 or 17
Modes/Personalities: 8 personalities (1, 3, 5, 7, 11, 13, 14, 17, HSV)

ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 6 units @ 120 V; 10 units @ 208 V; 12 units @ 230 V
Power and Current: 260 W, 2.15 A @ 120 V, 60 Hz
Power and Current: 260 W, 1.25 A @ 208 V, 60 Hz
Power and Current: 260 W, 1.12 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS
CE, MET, FCC
IP Rating: IP20, dry location

WHAT'S INCLUDED
Ovation F-915FC
Neutrik® powerCON® power cord
Gel frame (7.5 in/191 mm accessories)

OPTIONAL ACCESSORIES
Professional Clamps: CTC-50HC, CTC-50HCN
Neutrik® powerCON® cables
3-pin or 5-pin DMX Cables
Color Blending Filters: DF60X1D, DF20D
Ovation F 7.5″ Barndoor

Chauvet F915FC (Chauvet Pro Ovation-F915 FC)
