Chauvet Pro Ovation H-55FC (white) DISCONTINUED

This product has been discontinued by the manufacturer. Please contact us to find a replacement.
Reviews: 0 Description Q&A: 0 $0 Shipping, $0 Tax *0% Interest


Reviews: Description Q&A: 0 $0 Shipping, $0 Tax *0% Interest
Product Description

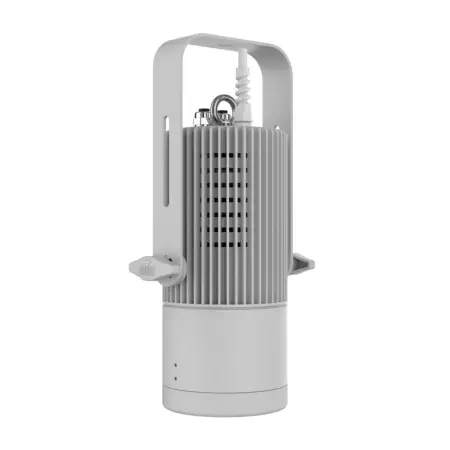

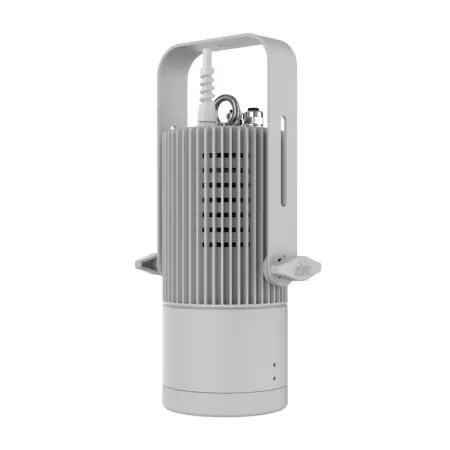

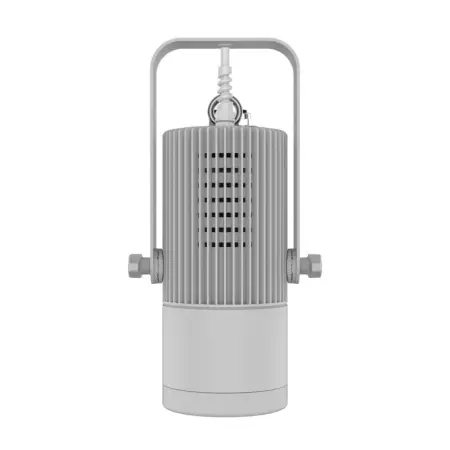

Ovation H-55FC is a small, silent, convection cooled LED houselight with a punchy, full color output and high CRI that makes it ideal for theaters, recital halls, worship venues, or any other application with a smaller trim height. The compact unit also features 16-bit dimming, RDM and W-DMX control as well as adjustable PWM to prevent flickering on televised performances. The interchangeable lenses are a must-have feature in theatrical and house of worship applications. The compact houselight also includes multiple mounting options with removable fixture yoke, a recess mounting, and a sconce mounting kit.

Compact, full color (RGBAL), convection cooled houselight
Interchangeable lens plates to adapt to different mounting heights
5-pin XLR and terminal blocks for DMX connections
Use included yoke for mounting, or suspend from integrated loop-eye
Included recess and sconce mounting kits
16-bit dimming for ultra-smooth fades
DMX, WDMX and RDM (Remote Device Management) for added programming flexibility
Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

Light Source: 26 LEDs (6 red, 6 green, 6 blue, 5 amber, 4 lime) 2.62 to 5.25 W, (840 mA), 4807 K, 50,000 hours life expectancy.Color Temperature (at full): 4807 KCRI: 82
Beam Angle (w/80° filter): 46.1°
Beam Angle (w/65° lens): 63.3°
Beam Angle (w/45° lens): 38.8°
Beam Angle (w/25° lens): 24.7°
Field Angle (w/80° filter): 76.8°
Field Angle (w/65° lens): 86.9°
Field Angle (w/45° lens): 78.4°
Field Angle (w/25° lens): 46.7°
Illuminance (w/80° filter): 152 lux @ 5 m
Illuminance (w/65° lens): 115 lux @ 5 m
Illuminance (w/45° lens): 173 lux @ 5 m
Illuminance (w/25° lens): 430 lux @ 5 m
Lumens (w/80° filter): 2,698
Lumens (w/65° lens): 2,928
Lumens (w/45° lens): 2,691
Lumens (w/25° lens): 2,849
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6000 Hz, 25,000 Hz

Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 30 Hz
Color Temperature Presets: Yes/No
Dim Modes: 4
Built-in Automated Programs: Yes

Power Connection: Bare-wired
Power Input: Hard-wired
Data Connectors: 5-pin XLR, Phoenix connector
Cable Length (power): 15 ft (4.5 m)

Control Protocol: DMX, W-DMX, RDM
DMX Channels: 4, 5, 8, 11, 13, 14, 16 or HSV
Modes/Personalities: 8 personalities (2, 4, 5, 8, 11, 13, 14, 16, HSV)

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 62 W, 0.541 A @ 120 V, 60 Hz
Power and Current: 64 W, 0.308 A @ 208 V, 60 Hz
Power and Current: 64 W, 0.278 A @ 230 V, 50 Hz

IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-10 °C to 45 °C)

Dimensions: 13.14 x 6.92 x 4.52 in (334 x 176 x 115 mm)
Weight: 7.4 lb (3.4 kg)
Exterior Color: White

Ovation H-55FC
65°, 40° and 25° Lens
80° FilterEgg Crate
Recess and Sconce Mounting Kits

RDM2go or other RDM capable interface for fixture set-up

W-DMX™ Transmitter
Professional Clamps: CTC-50HC, CTC-50HCN
5-pin DMX Cables

Chauvet Ovation H-55FC - WHITE   ( Chauvet Pro OVATIONH55FCWHT )
