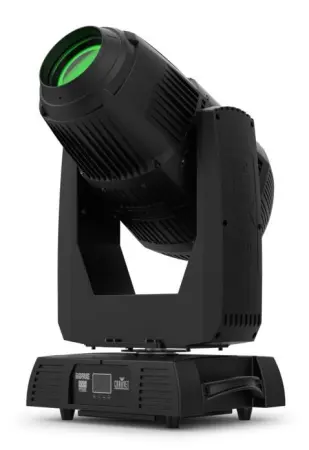

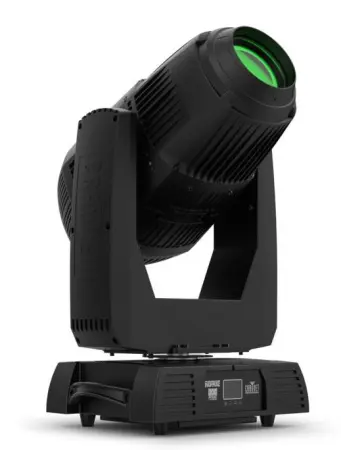

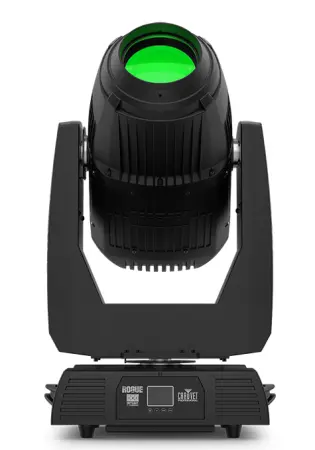

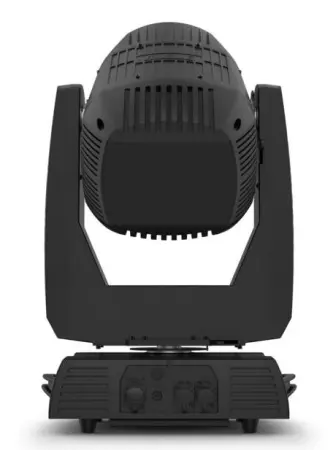

Chauvet Pro Rogue Outcast 1 Hybrid

$4,335.00 new
Warranty
Description Q&A: 0 Reviews: 0 Financing
or $394/mo $0 Shipping, $0 Tax



Available - Call to confirm exact lead time Low Price Guarantee



or $ 394/mo $0 Shipping, $0 Tax


User Reviews

Read all reviews
Product Description

Rogue Outcast 1 Hybrid is an outdoor-ready, IP65 spot/beam/wash moving head ideal for small to medium festivals and events. Powered by an intense 400W lamp, Rogue Outcast 1 Hybrid delivers a 6500 K output with tight beam angles of 1° to 5° in Beam Mode and a zoom range of 2.2° to 29.1° in Spot Mode and 4.9° to 28.3° in Wash Mode for maximum visual impact. This feature-packed unit offers 1 rotating and 1 static gobo wheel, 2 individually controllable 8 and 5-facet layerable prisms, and a 14-hue color wheel for solid and split colors. Control is over DMX and RDM.

Features:
Fully featured, IP 65 rated, high powered Spot/Beam/Wash combination fixture with an USHIO 400W, 6500K with 6000 hour life expectancy lamp, 2 gobo wheels, 2 layerable prisms, and linear zoom.
Rugged housing designed to withstand the elements in a temporary outdoor setting.
Individually controllable and layerable 6 facet linear and 8 facet round prisms for maximizing visual impact.
Frost and beam flattening options for even light distribution.
Tight 2° narrow beam angle for focused air effects.
Linear zoom of 1 ° to 15.3° in beam mode, 2.2° to 29.1° in spot mode and 4.9° to 28.3° in wash mode for coverage in any application.
9 rotating and 13 static gobos for massive visual effect.
DMX and RDM protocol control.
True 1 compatible power input.

Specifications:
OPTICAL
Light Source: USHIO NSL-400 W lamp, 6632 K, 6,000 hours life expectancy
Color Temperature (at full): 6483 K
Beam Angle: 2.2° to 12.4° (Spot mode)
Field Angle: 4.3° to 24.3° (Spot mode)
Cutoff Angle: 5.2° to 29.1° (Spot mode)
Beam Angle: 1° to 5.2° (Beam mode)
Field Angle: 1.8° to 12.6° (Beam mode)
Cutoff Angle: 2.1° to 15.3° (Beam mode)
Beam Angle: 4.9° to 18° (Wash mode)
Field Angle: 9.3° to 25.6° (Wash mode)
Cutoff Angle: 12.4° to 28° (Wash mode)
Zoom Range (Spot mode): 2.2° to 29.1°
Zoom Range (Beam mode): 1° to 15.3°
Zoom Range (Wash mode): 4.9° to 28.3°
Lumens – Source: 14,575
Lumens – Output: 9,263
Illuminance (4.3°): 209326 lux @ 5 m (Spot mode)
Illuminance (24.3°): 5742 lux @ 5 m (Spot mode)
Illuminance (1.8°): 123,124 lux @ 15 m (Beam mode)
Illuminance (12.6°): 3,517 lux @ 15 m (Beam mode)
Illuminance (9.3°): 17,118 lux @ 5 m (Wash mode)
Illuminance (25.6°): 1,570 lux @ 5 m (Wash mode)

DYNAMIC EFFECTS
Pan and Tilt: 540°/260°
Pan and Tilt Ranges: 540°, 360°, 180° pan/260°, 180°, 90° tilt
Colors: 13 + white, split colors, continuous scroll at variable speeds
Gobos (1): 9 + open (9 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobos (2): 13 + open (13 metal), continuous scroll at variable speeds
Gobo Size: Gobo Wheel 1 (rotating glass): 15.9 mm (outside), 12 mm (image), 1.1 mm (max. thickness)
Dimmer: Motorized
Shutter/Strobe: Motorized
Zoom: Motorized
Focus: Motorized
Frost: Motorized
Prism: 6 Facets, motorized, rotating
Prism: 8 Facets, motorized, rotating
Move-in-Black: Yes

CONSTRUCTION / PHYSICAL
Dimensions: 15.91 x 12.20 x 30.16 in (404 x 310 x 766 mm)
Weight: 83.8 lb (38 kg)
Exterior Color: Black
Housing Material: Aluminum die-cast

CONNECTIONS
Power Connection: Bare-wired to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Data Connectors: 5-pin IP rated
Cable Length (power): 5 ft (1.5 m)

CONTROL
Control Protocol: DMX, RDM
DMX Channels: 20 or 25
Modes/Personalities: 2 personalities (20, 25)

ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 514 W, 4.329 A @ 120 V, 60 Hz
Power and Current: 513 W, 2.501 A @ 208 V, 60 Hz
Power and Current: 520 W, 2.267 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS
CE, MET
IP Rating: IP65, temporary outdoor/wet use
Temperature (Ambient): 14 °F to 104 °F (-10 °C to 40 °C)

WHAT'S INCLUDED
Rogue Outcast Hybrid IP
Seetronic Powerkon IP65 power cord
2 Omega brackets with mounting hardware
Quick Reference Guide

Chauvet Professional RogueOutcast1Hybrid
