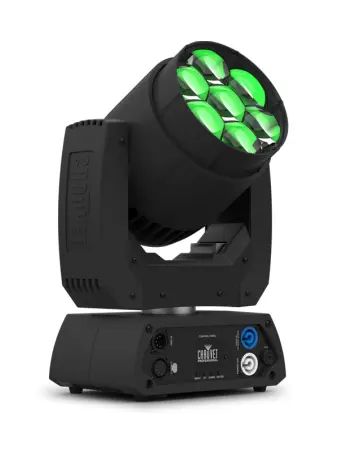

Rogue R1 BeamWash is a versatile and compact moving head that projects a punchy beam and wash. Weighing just under 12 lbs., the unit features a custom-designed optical system with seven, 40W RGBW LEDs and an expansive zoom range of 5° to 58.2° that allows for it to project tight, solid beam effects at its most narrow and transforms the light source into a nice even wash with excellent color blending as it expands. The unit’s small size also allows for a superfast and smooth pan and tilt movement. It’s also RDM enabled for remote addressing and is equipped with a selectable PWM setting to maintain flicker free operation on camera.

AT A GLANCE
7 RGBW LEDs, 40 W each
5-pin DMX input/output connections
Unique lens design for excellent color blending and tight beam effects
Fast, smooth pan and tilt movement
6 distinct dimming modes for advanced control
Omega mounting bracket fits all Rogue and Maverick fixtures
Easy to read OLED display with simple, effective menu options
Simple and complex DMX channel profiles for programming versatility

OPTICAL
Light Source: 7 LEDs (quad-color RGBW) 40 W, (980 mA), 50,000 hours life expectancy
Color Temperature (range): 2800 to 10000
KBeam Angle: 4° to 37.8°
Field Angle: 5° to 58.2°
Zoom Angle: 5° to 58.2°
Lumens – Source: 5,400
Lumens – Output: 3,941 Wide, 1,483 Narrow
Illuminance (5°): 13,939 lux @ 5 m
Illuminance (55°): 378 lux @ 5 m

DYNAMIC EFFECTS
Pan and Tilt: 540°/230°
Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 230° tilt
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 20 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Curves: 4
Built-in Automated Programs: Yes
Customizable Programs: No
Recall Custom Programs: No

CONSTRUCTION / PHYSICAL
Dimensions: 8.42 x 6.29 x 14.52 in (214 x 160 x 369 mm)
Weight: 11.8 lb (5.35 kg)
Exterior Color: Black
Housing Material: High-impact flame-retardant polymer

CONNECTIONS
Power Connection: Edison (Local) plug to Neutrik® powerCON®
Power Input: Neutrik® powerCON®
Power Output: Neutrik® powerCON®
Data Connectors: 5-pin XLRCable Length (power): 5 ft (1.5 m)

CONTROL
Control Protocol: DMX
DMX Channels: 14, 15, 19 or 21
Modes/Personalities: 4 personalities (14, 15, 19, 21)

ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 8 units @ 120 V; 14 units @ 208 V; 16 units @ 230 V
Power and Current: 179 W, 1.614 A @ 120 V, 60 Hz
Power and Current: 175 W, 0.93 A @ 208 V, 60 Hz
Power and Current: 157 W, 0.81 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS
CE, MET
IP Rating: IP20, dry location

WHAT'S INCLUDED
Rogue R1 BeamWash
Neutrik® powerCON® power cord
Omega bracket with mounting hardware

OPTIONAL ACCESSORIES
Professional Clamps: CTC-50HC, CTC-50HCN
Safety Cable: SC-07
Neutrik® powerCON® cables
DMX Cables
Flight Case: CP6CASER1W
UPLOAD 08 software uploader
