Rogue™ R2 Wash makes a valuable addition to rental and production inventories. Durable and dependable, this moving wash workhorse produces a bright, powerful light and offers four zones of LED control to pixel map its 19 (15 W) RGBW LEDs. An industry leading zoom range of 12-49° gives the Rogue™ R2 Wash the spread to cover even the largest areas. Smooth color mixing and six distinct dimming modes, simple and complex DMX channel profiles and powerCON® in and out are just some of the other features that make this fixture a standout performer in any setting.
Features
• 19 RGBW LEDs, 15 W each
• 5 zones of LED control for pixel mapping control
• Unique lens design for excellent color blending
• Fast, smooth pan and tilt movement
• 6 distinct dimming modes for advanced control
• 3- and 5-pin DMX input/output connections
• Omega mounting bracket, fits all Rogue™, Next™, and Legend™ fixtures
• Easy to read OLED display with simple, effective menu options
• Simple and complex DMX channel profiles for programming versatility
Specifications
• DMX Channels: 15, 17, 22, 33, 54 or 56
• Data Connectors: 3- and 5-pin XLR
• Light Source: 19 LEDs (quad-color RGBW) 15 W, (1 A), 50,000 hours life expectancy
• Pan and Tilt: 540°/230°
• Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 230° tilt
• Automatic Pan/Tilt Correction: Yes
• Built-in Automated Programs: Yes
• Customizable Programs: No
• Recall Custom Programs: No
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 20 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Beam Angle: 8° to 30°
• Field Angle: 12° to 49°
• Zoom Angle: 12° to 49°
• Dimming Modes: 6
• Illuminance (12°): 8,650 lux @ 5 m
• Illuminance (49°): 750 lux @ 5 m
• Color Temperature (range): 2800 to 10000 K
• IP Rating: IP20, dry location
• Cable Length: 5 ft (1.5 m)
• Power Connection: Edison plug to Neutrik® powerCON®
• Power Input: Neutrik® powerCON®
• Power Output: Neutrik® powerCON®
• Power Linking: 4 units @ 120 V; 8 units @208 V; 9 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 339 W, 2.95 A @ 120 V, 60 Hz
• Power and Current: 324 W, 1.62 A @ 208 V, 60 Hz
• Power and Current: 324 W, 1.50 A @ 230 V, 50 Hz
• Weight: 20.4 lb (9.25 kg)
• Dimensions: 8.58 x 12.05 x 15.67 in (218 x 306 x 398 mm)
• Approvals: CE, MET

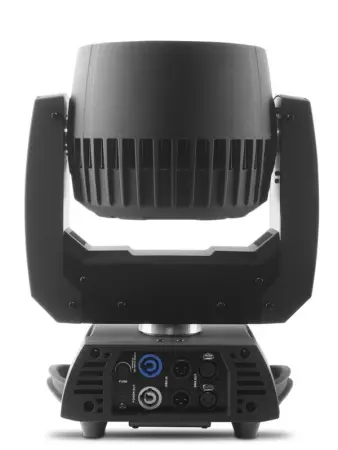

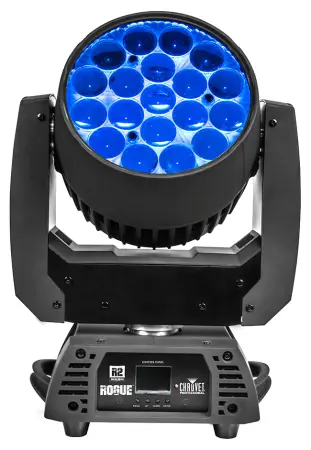

Chauvet Rogue-R2-Wash
(Chauvet Pro RogueR2 Wash)
