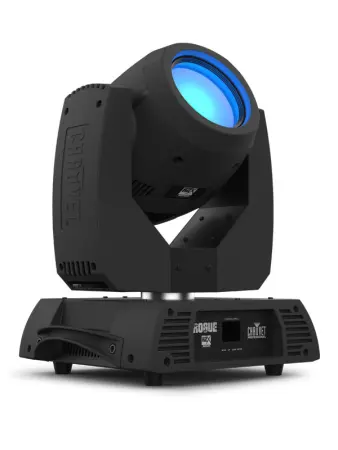

Rogue R2X Beam is the light cannon of the Rogue series, boasting an intense 134,000 lux at 15 meters from its 231 W Osram Sirius lamp. This fully-featured beam can be focused down to 1 degree for extremely focused aerial effects, and comes with 14 fixed colors in a fully scrollable, variable speed color wheel, which also provides split-colors perfectly. Additionally, the unit features individually controllable and overlapping 8 and 5-facet prisms for an endless supply of creative and dynamic beam looks. Frost and focus options ensure even light distribution and the unit is equipped with RDM and DMX protocols.

AT A GLANCE
Fully featured, high powered beam fixture with a single color wheel, single static gobo wheel, and overlapping prisms
Fast and precise movement of Pan and Tilt functions
Individually controllable and overlappable 8 and 5-facet prisms
Frost for even light distribution
Tight 1° beam for extremely focused areal effects
RDM Enabled for remote addressing and trouble shooting
17 static gobos for massive visual impact

SPECIFICATIONS
OPTICAL
Light Source: Osram Sirius 231 W lamp, 7900 K, 2,000 hours life expectancy
Color Temperature (at full): 7293 K
Beam Angle: 1°
Field Angle: 2°
Lumens – Source: 10,500
Lumens - Output: 7,500
Illuminance (total): 134,000 lux @ 15 m

DYNAMIC EFFECTS
Pan and Tilt: 540°/270
Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt
Colors: 14 + white, split colors, continuous scroll at variable speeds
Gobos: 17 + open (17 metal), continuous scroll at variable speeds
Dimmer: Motorized
Shutter/Strobe: Motorized
Focus: Motorized
Frost: Motorized
Prism: 5 Facets, motorized, rotating
8 Facets, motorized, rotating
Strobe Rate: 0 to 20 Hz
Move-in-Black: Yes

CONSTRUCTION / PHYSICAL
Dimensions: 16.1 x 12.8 x 19.2 in (409 x 327 x 490 mm)
Weight: 45.4 lb (20.6 kg)
Exterior Color: BlackHousing
Material: High-impact flame-retardant polymer

CONNECTIONS
Power Connection: Edison (Local) plug to Neutrik
Power Input: Neutrik powerCON
Data Connectors: 3- and 5-pin
XLRCable Length (power): 5 ft (1.5 m)

CONTROL
Control Protocol: DMX, RDM
DMX Channels: 16 or 19
Modes/Personalities: 2 personalities (16, 19)

ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 384 W, 3.18 A @ 120 V, 60 Hz
Power and Current: 378 W, 1.81 A @ 208 V, 60 Hz
Power and Current: 382 W, 1.61 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS
CE, MET
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED
Rogue R2X Beam
Neutrik powerCON power cord
2 Omega brackets with mounting hardware

OPTIONAL ACCESSORIES
Professional Clamps: CTC-50HC, CTC-50HCN
Safety Cable: SC-07DMX cables
Flight Case: #CPDUALCASEA2
MRUPLOAD software uploader
Software Uploader: UPLOAD 08
