Product Description

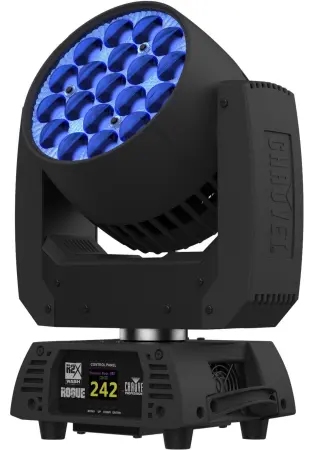

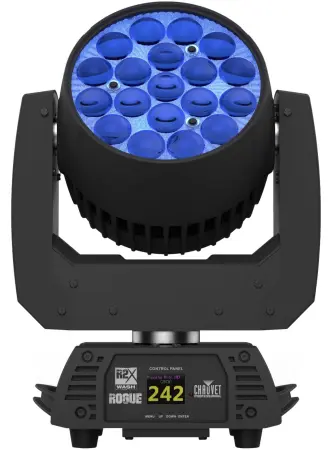

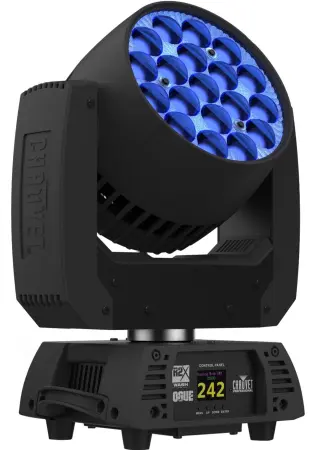

Rogue R2X Wash
Rogue R2X Wash is a valuable addition to rental and production inventories. Durable and dependable, this moving wash workhorse produces a bright, powerful light and offers five zones of LED control to pixel map its 19 (25 W) RGBW quad-LEDs. A standout zoom range of 12° to 49° gives it the spread to cover even the largest areas. Smooth color mixing, simple and complex DMX channel profiles and powerCON in and out are just some of the other features that make this fixture a standout performer in any setting.

AT A GLANCE
Fully featured RGBW LED yoke wash fixture with LED zone control and zoom

16-bit dimming of master dimmer as well as individual colors for smooth control of fades

19 RGBW LEDs, 25 W each

3- and 5-pin DMX input/output connections

5 zones of LED control for pixel mapping control

Unique lens design for excellent color blending

Fast, smooth pan and tilt movement

RDM enabled for remote addressing and trouble shooting

Selectable LED maximum output to match legacy Rogue R2 Washes

6 distinct dimming modes for advanced control

Omega mounting bracket, fits all Rogue and Maverick fixtures

Easy to read OLED display with simple, effective menu options

Simple and complex DMX channel profiles for programming versatility

SPECIFICATIONS
OPTICAL
Light Source: 19 LEDs (quad-color RGBW) 25 W, (1.5 A), 50,000 hours life expectancyColor Temperature (range): 2800 to 10000 KBeam Angle: 8° to 30°Field Angle: 12° to 49°Zoom Angle: 12° to 49° Lumens – Source: 10,300Lumens – Output: 7,300Illuminance (12°): 10,000 lux @ 5 mIlluminance (49°): 840 lux @ 5 m PWM Frequency: 1,200 Hz
DYNAMIC EFFECTS
Pan and Tilt: 540°/230°Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 230° tiltDimmer: ElectronicShutter/Strobe: ElectronicZoom: MotorizedStrobe Rate: 0 to 20 HzStandalone Color Mixing: YesColor Temperature Presets: YesDim Curves: 4Built-in Automated Programs: YesCustomizable Programs: NoRecall Custom Programs: No
CONSTRUCTION / PHYSICAL
Dimensions: 8.58 x 12.05 x 15.67 in (218 x 306 x 398 mm)Weight: 22.8 lb (10.3 kg)Exterior Color: BlackHousing Material: High-impact flame-retardant polymer
CONNECTIONS
Power Connection: Edison (Local) plug to Neutrik® powerCON®Power Input: Neutrik® powerCON® Power Output: Neutrik® powerCON® Data Connectors: 3- and 5-pin XLRCable Length (power): 5 ft (1.5 m)

CONTROL
Control Protocol: DMX, RDMDMX Channels: 15, 17, 22, 33, 54, or 56Modes/Personalities: 8 personalities (15CH, 17CH, 22CH, 33CH, 33CH MS, 54CH, 54CH MS or 56CH)
ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)Power Linking: 4 units @ 120 V; 8 units @ 208 V; 9 units @ 230 VPower and Current: 346 W, 2.8 A @ 120 V, 60 HzPower and Current: 337 W, 1.6 A @ 208 V, 60 HzPower and Current: 342 W, 1.4 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
CE, METIP Rating: IP20, dry location
WHAT'S INCLUDED
Rogue R2X WashNeutrik® powerCON® power cordOmega bracket with mounting hardware
OPTIONAL ACCESSORIES
Professional Clamps: CTC-50HC, CTC-50HCNSafety Cable: SC-07 Neutrik® powerCON® cablesDMX CablesFlight Case:CP6CASER2WMR UPLOAD
