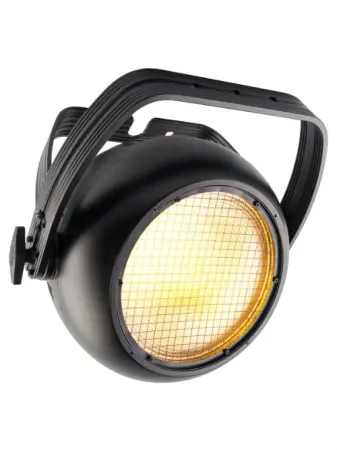

STRIKE 1 is a big, bold, outdoor-ready blinder powered by an intense 230 W warm white LED source. It is also an awesome strobe and a wide area floodlight. Its IP rated fan keeps it cool enough for use as a wash while IP rated direct power and DMX connections eliminate undesirable whips. An emulated “amber shift” warms the color temperature of the light as it dims to mimic incandescent lights perfectly.

Features:

Intense single pod blinder/strobe rated IP65 for all-weather use
16-bit dimming control for smooth, perfect fades
Strobe functionality for high-impact effects on-the-fly
Beautiful warm glow made possible with emulated “red shift” to mimic incandescent fixtures
Multi-bracket allows you to create multi-fixture banks with ease
Easy to use OLED display
Adjustable Pulse Width Modulation (PWM) control to eliminate flicker on camera
RDM (Remote Device Management) for added flexibility

Specifications:

OPTICAL

Light Source: 1 LED (WW) 230 W, (4.1 A), 2688 K, 50,000 hours life expectancy
Light Source: 8 LEDs (Amber) 2 W, (0.7 A), 50,000 hours life expectancy
Color Temperature (at full): 2688 K
Color Temperature (at 10%): 1941 KCRI: 93
Beam Angle: 30°Field Angle: 51°
Illuminance: 1,119 lux @ 5 m
Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 25,000 Hz

DYNAMIC EFFECTS

Dimmer: Electronic
Strobe Rate: 0 to 25 Hz
Dim Modes: 4
Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

Dimensions: 14.96 x 7.40 x 14.61 in (380 x 188 x 371 mm)
Weight: 18.8 lb (8.6 kg)
Exterior Color: Black
Housing Material: Aluminum die-cast
Accessory Holder/Gel Frame Size: 8.87 in (225 mm)

CONNECTIONS

Power Connection: Edison (Local) plug to Seetronic
Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin XLR
Cable Length (power): 5 ft (1.5 m)

CONTROL

Protocol(s): DMX, RDM
DMX Channels: 3, 4, 5 or 6
Modes/Personalities: 4 personalities (3ch, 4ch, 5ch, 6ch)

ELECTRICAL

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 6 units @ 120 V; 10 units @ 208 V; 11 units @ 230 V
Power and Current: 266 W, 2.209 A @ 120 V, 60 Hz
Power and Current: 255 W, 1.306 A @ 208 V, 60 Hz
Power and Current: 258 W, 1.201 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

CEIP Rating: IP65, temporary outdoor/wet use

Chauvet Professional Strike One (Chauvet Pro Strike1)
