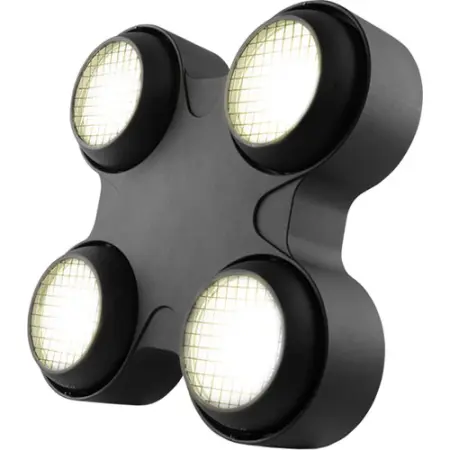

STRIKE 4 is an electrifying audience blinder and strobe with four high-power 100 W COB LEDs housed in independently focusable pods. It’s the go-to-choice for high energy automated strobe effects and its smooth 16-bit dimming curve facilitates incandescent-style fades. Its adjustable PWM is ideal in film and studio applications. STRIKE 4 comes standard with basic and advanced control personalities for flexibility in programming, and an easy-to-read OLED display for quick onboard adjustments.

Features:

16-bit dimming control for smooth, perfect fades
Individual pan of each head to allow for directional adjustment of light output
Simple and complex DMX channel profiles for programming flexibility
Easy to use OLED display
Automated strobing programs for easy programming
Adjustable Pulse Width Modulation (PWM) control to eliminate flicker on camera

Specifications:

Optical
Light Source: 4 LEDs (WW) 100 W, (2.3 A ), 3096 K, 50,000
hours life expectancy
Color Temperature (at full): 3096 K
Beam Angle: 49°
Field Angle: 79°
Illuminance (total): 999 lux @ 5 m
Illuminance (per cell): 242 lux @ 5 m
Pixels: 2 x 2
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz,
25,000 Hz

Dynamic Effects
Pan: ± 24° manual adjustment per pod
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 30 Hz
Standalone Color Mixing: Yes
Dim Modes: 4
Built-in Automated Programs: Yes

Construction / Physical
Dimensions: 14.2 x 6.4 x14.2 in (362 x 163 x 362 mm)
Weight: 19 lb (8.7 kg)

Exterior Color: Black
Housing Material: Aluminum die-cast
Connections
Power Connection: Edison (Local) plug to Neutrik
powerCON
Power Input: Neutrik powerCON
Power Output: Neutrik powerCON
Data Connectors: 5-pin XLR
Cable Length (power): 5 ft (1.5 m)

Control
Control Protocol: DMX
DMX Channels: 1, 3, 4 or 9

Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 5 units @ 120 V; 9 units @ 208 V; 10 units @
230 V
Power and Current: 301 W, 2.49 A @ 120 V, 60 Hz
Power and Current: 287 W, 1.43 A @ 208 V, 60 Hz
Power and Current: 286 W, 1.29 A @ 230 V, 50 Hz

Certifications / Qualifications
CE
IP Rating: IP20, dry location

What's Included
STRIKE 4
Neutrik powerCON power cord

Chauvet Professional Strike4 (Chauvet Pro Strike 4 blinder)
