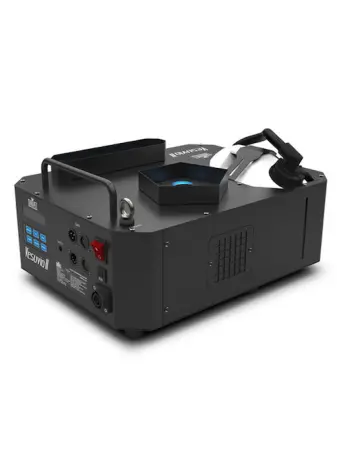

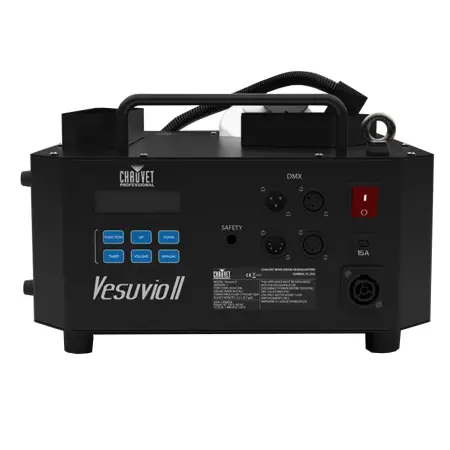

Vesuvio II illuminates bursts of fog with advanced RGBA+UV LED color mixing, providing ferocious effects for events and performances. Featuring an impressive 40,000 cubic feet of fog per minute, it boasts a best in class 40 seconds of full burst output. New dual LED sections give greater creative control for a more even coverage of light. The Vesuvio II is built for efficiency, consuming only 80ml/min of QDL fluid. This highly versatile unit can run in three different positions: vertically, horizontally or from overhead with mounting brackets. It works best with the Chauvet HDF high-density and QDF quick dissipating fluid.

Features:

Advanced red, green, blue, amber, and UV (RGBA/UV) LED color mixing
40 second continuous bursts of fog, for intense effects and performance
40,000 CFM fog output for intense, large effects
2.5 l fluid tank for reliability in production
Strong, sturdy construction for numerous production types
DMX control for ease of use in production situations
3- and 5-pin DMX input/output connections

Specifications:

Optical
Light Source: 10 LEDs (RGBA/UV) 8.5 W, (3 A), 50,000 hours life expectancy
Illuminance (Center): 199.5 lux @ 5 m
Illuminance (Linear): 154 lux @ 5 m
Illuminance (Both): 334 lux @ 5 m PWM Frequency: 126 Hz

Construction / Physical
Dimensions: 19.49 x 13.18 x 9.39 in (495 x 335 x 239 mm) Weight: 28.4 lb (12.9kg)
Exterior Color: BLACK
Housing Material: Aluminum alloy
Tank Capacity: 0.7 gal (2.5 l) Fluid Consumption: 80 ml/min

Control
Control Protocol: DMX
DMX Channels: 15 Modes/Personalities: 1 personalities On-Board Control: Yes
Included Remote: No

Certifications / Qualifications
CE
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included
Vesuvio 2.0
Seetronic Powerkon IP65power cord


Dynamic Effects
Dimmer: Electronic Shutter/Strobe: Electronic Strobe Rate: 0 to 20 Hz Output: 40,000 cfm
Low Fluid Shutdown: No

Connections
Power Connection: Edison plug to Seetronic Powerkon IP65 Power Input: Seetronic Powerkon IP65
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)

Electrical
Input Voltage (120V): 120 VAC, 60 Hz
Input Voltage (220V): 230 VAC, 50 Hz
Power and Current (120V): 1,480 W, 12.55 A @ 120 V, 60 Hz Power and Current (220V): 2,880 W, 12.55 A @ 230V, 60 Hz Heat-up Time (120V): 10 min
Heat-up Time (220V): 10 min
Breaker Size (120V): 15A
Breaker Size (220V): 15A

Optional Accessories
Clamps
Neutrik powerCON cables Neutrik etherCON cables DMX Cables

Chauvet Vesuvio 2 (Chauvet Pro VESUVIOII)
