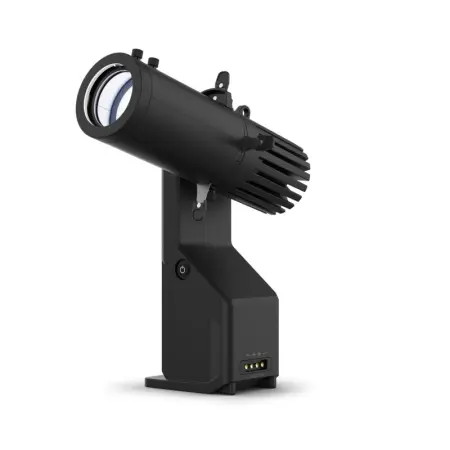

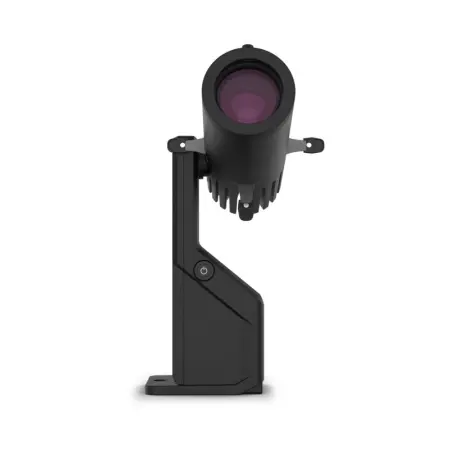

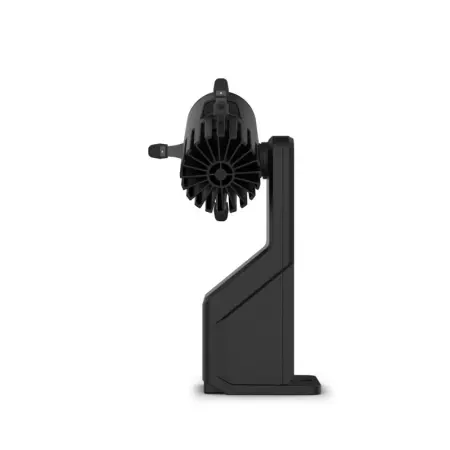

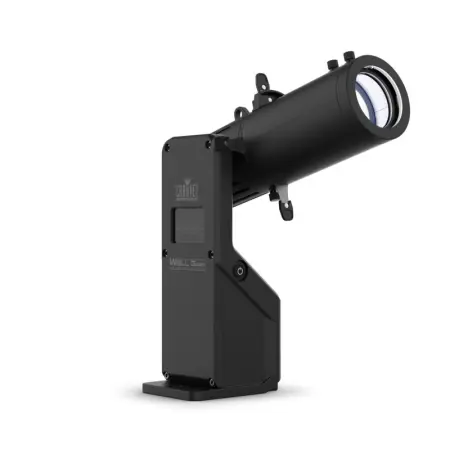

WELL Gobo is a compact, outdoor-ready, battery-powered gobo projector ideal for corporate and event rental inventories. Compatible with both glass and metal gobos, the unit also features a manual 20 to 41-degree zoom and framing shutters for flawless shutter cuts. Set it then forget it with onboard OLED display, and control your way with WDMX to link to WELL COM. WELL Gobo includes multiple mounting options and comes in a pack of 4 with a self-charging case.

Features:
A completely wireless, IP 65 rated, battery powered Gobo Projector with a cool white LED and manual framing shutters that is controlled by W-DMX, IR remote (not included), or manually from the OLED display
Zoom range of 20° to 41° making sizing patterns on surfaces easy
Hard and soft focuses are easily achieved
Works with both glass and metal E size gobos (1 mm max thickness)
User selectable PWM settings to ensure flawless on camera operation
M12 hole for easy clamp installation
Up to 8 hours of operational time on full charge
Recharging case can be power linked to save on power outlets
Recharging case can be charged with the lid closed saving warehouse space

Specifications:
OPTICAL
Light Source: 1 LED (CW) 25.2 W, (1.3 A), 6542 K, 50,000 hours life expectancy.
Color Temperature (at full): 6542 K
Lumens: 2892
CRI: 79.1
Beam Angle:17.3° to 36.6°
Field Angle: 20° to 41°
Zoom Angle: 20° to 41°
Illuminance (17.3°): 1,487 lux @ 5 m
Illuminance (8 hr mode 17.3°): 1,487 lux @ 5 m
Illuminance (36°): 347 lux @ 5 m
Illuminance (P/S mode 36°): 165 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

DYNAMIC EFFECTS
Manual Tilt: 180°
Tilt Ranges: 0° to 180° tilt
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Manual
Focus: Manual
Strobe Rate: 0 to 25 Hz
Dim Modes: 4
Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL
Dimensions (Single Unit): 10.11 x 6.81 x 12 in (257 x 173 x 305 mm)
Dimension (Charging Case): 27.64 x 17.24 x23.36 in (702mm x 438 x 593.4 mm)
Weight (Single Unit): 6.6 lb (3 kg)
Weight (Charging Case): 71 lb (32.21 kg)
Exterior Color: Black
Housing Material (Single Unit): Aluminum diecast
Housing Material (Charging Case): Aluminum alloy, wood
Gobo Size (Optional): “E”: 37.5 mm (outside), 24 mm (image), 1 mm (max. thickness)

CONNECTIONS
Power Connection: Edison (Local) plug to Seetronic Powerkon
Power Input: Seetronic Powerkon
Cable Length (power): 5 ft (1.5 m)

CONTROL
Control Protocol: W-DMX, IRC
DMX Channels: 1, 2, 3 or 6

ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 9 units @ 120 V; 15 units @ 208 V; 16 units @ 230 V
Power and Current (single unit charging): 42 W, .345 A @ 120 V, 60 Hz
Power and Current (charging case): 168 W, 1.38 A @ 120 V, 60 Hz
Power and Current (single unit charging): 48 W, 0.220 A @ 208 V, 60 Hz
Power and Current (charging case): 192 W, 0.880 A @ 208 V, 60 Hz
Power and Current (single unit charging): 49 W, 0.211 A @ 230 V, 50 Hz
Power and Current (charging case): 196 W, 0.844 A @ 230 V, 50 Hz

BATTERY
Battery type: Lithium Ion
Rechargeable: Yes
Battery Charge Time: 8 hours
Battery Life: 5 hrs (high output), 8 (power saving mode)
Battery Power: 29.6, 4400 mAh

CERTIFICATIONS / QUALIFICATIONS
CE, MET
IP Rating: IP65, temporary outdoor/wet use

WHAT'S INCLUDED
(4) WELL Gobo
Charging Case
powerCON power cable with Edison plug(4) Gobo holder

Chauvet WELL Gobo4Pack (Chauvet Pro WELLGOBOX4)
