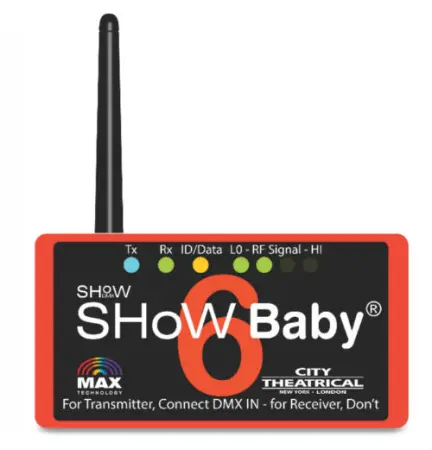

City Theatrical Show Baby 6 (3 pin)
- DISCONTINUED

product discontinued

This product has been discontinued by the manufacturer. Please contact us to find a replacement.

*Discontinued

Experience the ultimate simplicity of plug and play with the power of SHoW DMX Neo® Max Technology with City Theatrical's Show Baby® 6 Three Pin. The SHoW DMX SHoW Baby 6 Three Pin is incredibly easy to use and affordable, while for the first time offering the quality and advanced features of SHoW DMX Neo Maximum Bandwidth Technology. SHoW DMX Maximum Bandwidth Technology allows SHoW DMX users to avoid nearly all broadcast interference by confining their radio output to the general area of Wi-Fi channel 14, which is not used at all in the U.S. and is used relatively less in other countries. The new, sixth, SHoW ID in SHoW Baby 6 Three Pin gives SHoW Baby Max Technology capability to help avoid interference in a crowded spectrum.

The SHoW DMX SHoW Baby 6 represents a breakthrough in plug-and-play wireless DMX and RDM transmission - a single unit that can be used either as a wireless DMX Transmitter or Receiver. Set-up couldn’t be simpler with SHoW DMX SHoW Baby’s instant plug-and-play configuration: For a Transmitter, connect DMX IN, for a Receiver, don’t.

When a DMX cable is plugged into the SHoW DMX SHoW Baby’s DMX Input, the SHoW DMX SHoW Baby senses the connection and configures itself as a transmitter. If no cable is connected to the DMX Input, the SHoW Baby configures itself as a Receiver. All you need now to set up a SHoW DMX wireless DMX system is two SHoW DMX SHoW Baby units and two minutes!

Features:
SHoW DMX Neo™ 2.4GHz Frequency Hopping Spread Spectrum (FHSS) Radio
Wirelessly broadcast and receive a full Universe (512 slots) of DMX
Robust wireless DMX512 and RDM data transmission
6 Possible SHoW IDs – including the original SHoW Baby 201, and Neo Max
Full compatibility with previous SHoW Babys
Extremely low 7mS latency
RDM proxy and responder functions
Instant plug-and-play configuration: For a Transmitter, connect DMX IN, for a Receiver, don’t!
72mW ETSI broadcast power
Mounting Bracket for installation with C-Clamps or similar hanging hardware
Included CL2 12VDC Power Supply with international plug set
Included 2dBi Omni-directional Antenna
Neutrik® 5P XLR Connectors for DMX IN and DMX OUT

Mechanical:
NEMA 1 Steel and ABS enclosure
Aluminum Mounting Bracket for ½” Hardware for C-Clamp or other hanging hardware
Electronic/ Functional Features:
DMX IN and OUT via Neutrik 5P XLRs

LED indicators:
Tx (set as transmitter)
Rx (set as receiver)
Data (data present): color indicates SHoW ID
Green – 201
Cyan – 102
Magenta – 117
White – 133
Red – 149
Yellow – 165
RF Signal Strength (4 LEDS) Low to High

Compliance:
RoHS Compliant
CE Certified
FCC Certified

Specifications:
Model: SHoW DMX SHoW Baby® 6 Three Pin
Applications: Indoor Shows, Events, Environments, Clubs, Schools, Churches
Catalog Number: 5702M-3

Broadcast Power:
1mW ETSI
14mW ETSI
28mW ETSI
72mW ETSI
(Settable only through RDM)
SHoW DMX Neo Broadcast Modes:
SHoW ID 201: Adaptive Neo Full Bandwidth
SHoW ID 102: Neo Full Bandwidth
SHoW ID 117: Neo Low Bandwidth
SHoW ID 133: Neo Mid Bandwidth
SHoW ID 149: Neo High Bandwidth
SHoW ID 165: Neo Max Technology
SHoW DMX Classic Broadcast Modes: N/A
DMX Burst Modes: Full (512 Slots)
Ethernet Protocols Supported: N/A
Hopping Patterns: 3
Show IDs: 6
Maximum Line of Sight Ranges with standard antenna:
Indoor: 300’
Outdoors: 1500’
Radio Transceiver: CTI 5792
RF Sensitivity: -95dBm
RDM Features:
RDM Proxy
RDM Responder
Compliance Certifications: FCC, IC, CE
Power: 12VDC 200mA (100-240VAC 50/60 Hz to 12VDC Adapter provided)
Dimensions: 3.625”W x 1.8”H x 3”D / 92mm x 46mm x 76mm
Weight: 6.4 oz / .18 g

City-Theatrical showbaby 6 (Pro show baby VI)
