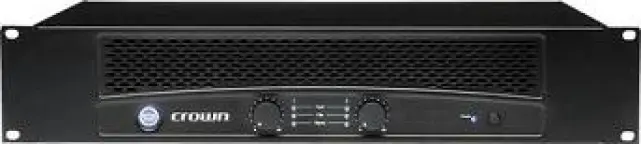

Crown XLS 202D

330W/ch @ 2 ohms, 300W/ch @ 4 ohms, 200W/ch @ 8 ohms, 660W bridged mono @ 4 ohms, 600W bridged mono @ 8 ohms. Designed to provide the quality, power, and reliability you expect from other Crown amps with many of the same controls and features for a much friendlier price.

Features sophisticated protection circuitry (from shorted, open, or mismatched loads, input and high frequency overloads), 5-way fault indicator, red LED on each channel that turns on when distortion becomes audible, green signal-present LED that flashes when the level is extremely low (indicating cabling problems), and detented level controls. Mode select switch for stereo or bridged; 3-speed fan; and choice of 1/4", XLR, and barrier strip jacks; all in a rugged steel chassis designed to handle serious road use.

Crown XLS 202D Power Amplifier Specifications:

• Performance
• Sensitivity (volts RMS) for full rated power at
• 4 ohms: 1.25V

  Frequency Response (at 1 watt) 22 Hz to 20 kHz: +0 dB, 0.8 dB

  Signal-to-Noise Ratio (20Hz-20kHz)

  A-weighted, below rated power: > 98dB

  No weighting, below rated power: > 93dB

  Total Harmonic Distortion (THD): < 0.5%

  Intermodulation Distortion (IMD): (60Hz and 7kHz at 4:1) from full rated output
• to 40dB: < 0.3%

  Damping Factor (8 ohm) 10Hz to 400Hz: >200

  Crosstalk (below rated power): at 1 kHz: 76 dB - at 20 kHz: 58 dB

  Input Impedance (nominal): 20 kilohms balanced, 10 kilohms unbalanced

  Load Impedance: Rated for 4 to 8 ohms per channel in Stereo, 8 ohms in Bridge Mono

  AC Line Voltage and Frequency Configurations: Available (±10%): 120 VAC 60 Hz, 100 VAC 50/60 Hz, 220 VAC 50 Hz, and 230-240 VAC Mode Switch

  Backpanel switch selects Dual or Bridge-Mono mode

  Indicators

  Signal Presence Indicators: Two green LEDs

Crown XLS 202D Power Amplifier Features:

• Features sophisticated protection circuitry
• 5-way fault indicator
• Red peak clip LED on each channel
• Green signal-present LED that flashes when the level is extremely low
• Detented level controls
• Mode select switch for stereo or bridged
• 3-speed fan
• XLR inputs; touch-proof binding post and Speakon© outputs
• Rugged steel chassis designed to handle serious road use.
• 3-year no-fault warranty

We carry the full line of Crown. If you need an amplifier that is not listed on our website, check here: https://www.crownaudio.com/amps.htm and call for a price.
