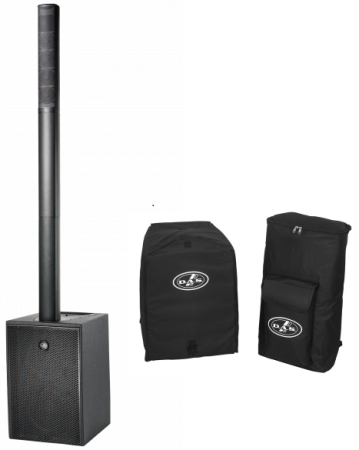

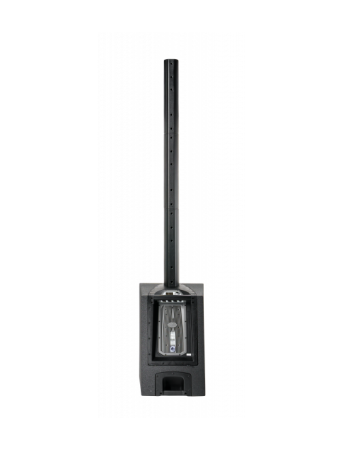

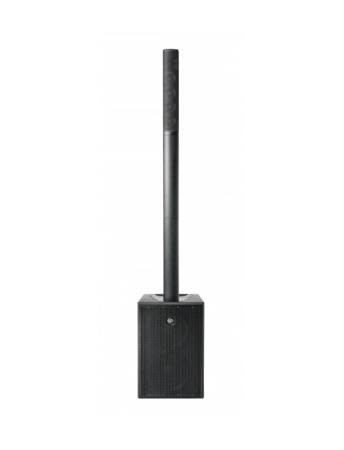

The Altea duo-20A is a 3-way ABS-injected powered portable column system with a wooden subwoofer, designed for mobile applications from corporate events, celebrations, and conferences to live music and more.
Its two-channel Class D amplifier and universal power supply with 2000W peak power provides the power and dynamics that such an ultra-lightweight system requires. The DSP board incorporates DAScontrol technology with LCD display and a rotary knob for selecting multiple acoustic modes (presets) depending on how the system is used as well as access to other configurable options within the system’s menu. The DSP incorporates two independent mic/line inputs with their respective volume settings, plus a third instrument input designed for connecting keyboards, basses or guitars. Audio can be sent wirelessly from mobile devices and the entire system can be controlled with the DASlink GM app.
The system incorporates two 10″ 10MG speakers developed specifically for low-frequency reproduction with ultra-low distortion levels via a powerful magnetic assembly and a cone suspension design with high displacement capability. To reproduce mid and high frequencies, the top system features four 3” 3PN drivers with neodymium magnets and an M27N (1″) neodymium compression  driver coupled to a 100º x 50º horn. The horizontal directional control of the system provided by the horn is highly uniform across the entire high-frequency spectrum (f>1000Hz) and the compression driver ensure that the highs are bright and defined.

FEATURES:

3-Way Powered portable column system
2000W peak
127 dB max peak SPL
2 x 10” compact subwoofer
4 x 3” + 1 x 1″ Neodymium Compression driver
Ultra lightweight Class D 2CH amplifier with SMPS
Stereo music streaming in high definition, DASLink GM
User definable 24-bit DSP with LCD screen, DAScontrol
3 voicing presets, 3 Band EQ
Ultra-Low Power consumption 1.5A at 230V

Applications

Corporate A/V
Conferencing
Portable and live clubs
Houses of worship
DJ mobile parties

SPECIFICATIONS:


Performance
Frequency Range (-10 dB) 37 Hz – 20 kHz
Horizontal Coverage (-6 dB) 100º
Vertical Coverage 50º
Maximum Peak SPL at 1 m 127 dB
Electronics and Connectors
Nominal Amplifier Power (continuous) 1000 W
Nominal Amplifier Power (peak) 2000 W
Nominal Amplifier Power LF (continuous) 500 W
Nominal Amplifier Power LF (peak) 1000 W
Nominal Amplifier Power HF (continuous) 500 W
Nominal Amplifier Power HF (peak) 1000 W
Input Type Balanced
Input Impeadance 20 kohms
Input Sensitivity 1.95 V (+8 dBu)
Audio Signal Input Connector 2 x XLR/TRS Combo Jack Line/Mic
1 x Wireless Stereo Bluetooth
1 x 1/4 TRS HI-Z Instrument
AUX Input 1 x 3.5 mm Mini Jack
Audio Signal Loop Thru Connector 1 x Male XLR
Control DAScontrol™
DASlink GM™
Current Draw 230 V / 115 V 1.5 A/3.0 A
Enclosure
Enclosure Construction Polypropylene + Birch Plywood
Finish Textured
Color Black
Dimensions ( H x W x D ) 2.000 x 360 x 445 mm
78,0 x 14,2 x 17,5 in
Net Weight 39,0 kg ( 85,8 lb )
Components
LF Driver 10MG
MF Driver 3PN
HF Driver M-27N
Shipping
Carton Dimensions ( H x W x D ) 678 x 565 x 708 mm
26,7 x 22,2 x 27,9 in
Shipping Weight 42,0 kg ( 92,4 lb )

DAS Audio ALTEA-DUO-20A (DAS Altea Duo 20A Column Array)
