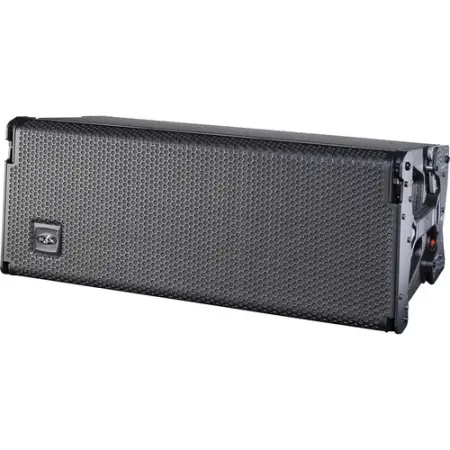

The single D.A.S. Event 208A is a powered, full-range, three-way line array module designed for professional live sound reinforcement applications. The speaker features three built-in Class-D amplifiers, providing 360W of power to the two 8" woofers and the 1.5" compression driver that combine to offer a frequency response of 75 Hz to 20 kHz and a peak SPL output of 132 dB. The two 8" woofers use a "twin-band" configuration, where each speaker operates in a specific frequency range. Advanced digital signal processing feeds the mid signal to only one of the two low-frequency drivers, while the other is rolled off. This technique eliminates off-axis interference between the drivers, enabling the Event Line Arrays to maintain optimal polar and frequency response characteristics throughout the low and low-mid operating ranges. The injected aluminum wave-guide provides a nominal 90º horizontal dispersion.

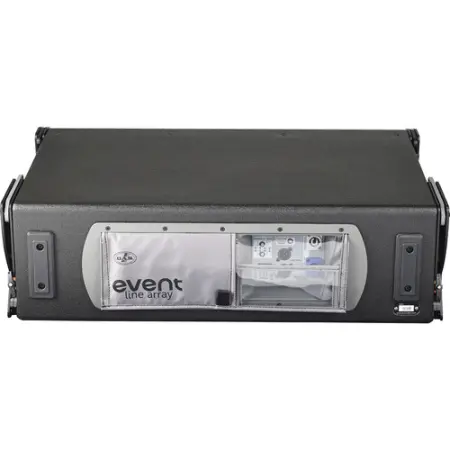

The rear panel of the speaker offers a line level XLR input and an XLR loop-thru output for connecting additional array modules. The integrated "Easy DSP" utilizes push-button combinations for adjusting to the number of array modules. Additionally, there is a down-fill preset button for simplifying long and short throw for down-fill applications. Two on-board limiters protect the electronics and drivers from overload, while an amp cover protects the electronics from the sun and rain.

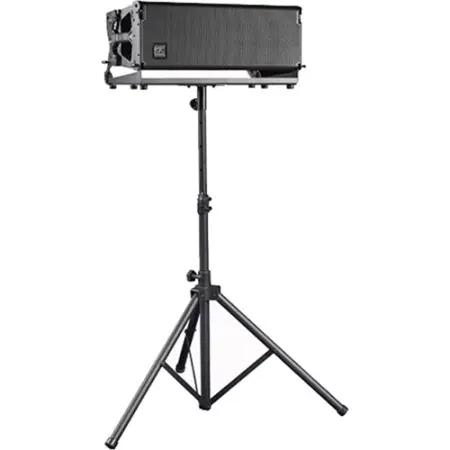

The ISO-flex painted birch plywood enclosure utilizes two bar handles for ease in transport, while the steel grille provides ample protection to the speaker's drivers. A single array module can be placed on a quality speaker stand, while multiples can be used in ground-stack configurations. Up to 24 line array modules can be flown for the ultimate in large-scale sound reinforcement deployment. The D.A.S. Event 208A ships with a power cord.

FEATURES
Powered 3-way system
Light-weight Class-D amplifiers
High-end DSP chipsets
Easy-DSP interface
Quality Neutrik connectors
Top-grade birch cabinet construction
Durable ISO-flex finish
Robust “quick-rig” professional rigging hardware
Proprietary injected aluminum HF wave-guide (not plastic)
D.A.S. M-75 compression driver and cone transducers

SPECIFICATIONS:

PA Speaker
Configuration Active 3-Way
Total Power Capacity 1080 W Peak
Amplifier Power Rating LF:
360 W Peak
180 W RMS
MF:
360 W Peak
180 W RMS
HF:
360 W Peak
180 W RMS
Drivers
HF Driver 1 x 1.5" / 3.8 cm Compression Driver
MF Driver 1 x 8" / 20.3 cm
LF Driver 2 x 8" / 20.3 cm Woofer
Performance
Frequency Range 75 Hz to 20 kHz -10 dB
Maximum SPL 132 dB
Coverage Angle 90° H
Input Sensitivity Line Input:
+18 dBu
I/O Impedance Line Input:
20 Kilohms
Connectivity
Audio I/O XLR 3-Pin Female Input
XLR 3-Pin Male Thru
Power
AC Input Power 115 VAC, 50 / 60 Hz
AC Power I/O 1 x powerCON Input
1 x powerCON Output
Current Consumption 2.6 A
Physical
Construction Material Plywood
Dimensions 10.6 x 26.4 x 14.4" / 269 x 671 x 366 mm
Weight 66 lb / 29.9 kg
Packaging Info
Package Weight 72.5 lb
Box Dimensions (LxWxH) 29 x 16.5 x 12.75"

D A S EVENT-208A-115 (DAS Powered, 2x8”, Three-way, 540 W (Cont.) / 1080 W (Peak), multipurpose Line Array System)
