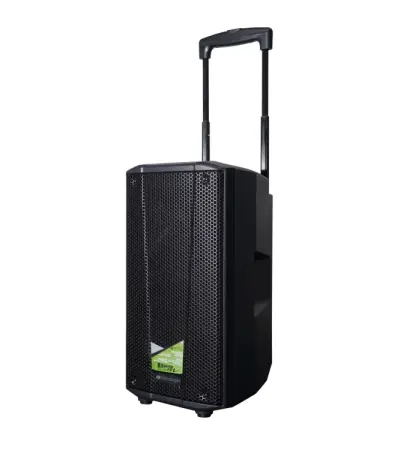

B·Hype M mixes the professional acoustic performance of the B·H family with the most advanced versatileness of a complete portable PA equipped with a wireless microphone system, audio media player with Bluetooth connection, SD card and USB port, a long lasting battery, wheels and a retractable top handle: all you need for a professional performance on the move. A perfect solution for travelling shows, busker’s show, nouveau cirque, spoken words acts, and all kind of performance set in outdoor or unconventional venues.

The system is equipped with: one 1” compression driver exit and one 10” woofer. The input section allows the user to connect: up to three wired inputs, one wireless microphone, and different media inputs (including Bluetooth® ). Users can also connect the audio output to a second speaker. The control section is equipped with an equalizer and a CH1/RF priority function that attenuates the level of every channel but Channel 1 and the Radio microphones for a smooth automatic ducking effect.

The sturdy and compact cabinet (only 12.5 kgs – 27 lbs) is equipped with wheels and 3 handles (1 per side and 1 retractable on the top). A 36 mm pole mounting also allow use on a speaker stand.

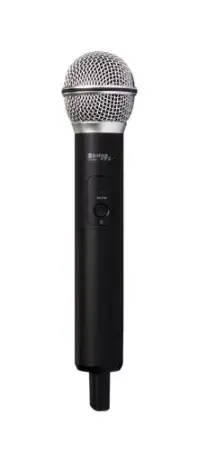

B·Hype M is available in two versions: with handheld transmitter (B-HYPE M HT bundle) or bodypack transmitter (B-HYPE M BT bundle). Both are provided with wireless antennas.

SPECIFICATIONS:

Technical Data
Speaker TypeBi-amp battery-powered speaker
Acoustical data
Frequency Response [-10dB]62 - 20000 Hz
Max SPL123 dB
HF compression driver1"
LF10"
Dispersion90 ° H x 45° H
Crossover frequency2400 Hz
Amplifier
AmpClass D SMPS
Peak Power190 Watt
Special FeaturesDigital battery charger,
Battery management and
power saving functions
User Interface1x OLED Display with 6 keys
for media management
Wireless Input1x UHF diversity receiver,
IR sync function
Mic/Line InputXLR / 1/4" Jack Combo (Mic - Line)
Stereo Input2x RCA In + 1x mini-Jack
USB Media ReaderUSB Type "A" port for media files
(MP3-WMA-AAC) + SD card
Bluetooth® Input1x Bluetooth® receiver
Mix Out1/4” Jack (unbalanced)

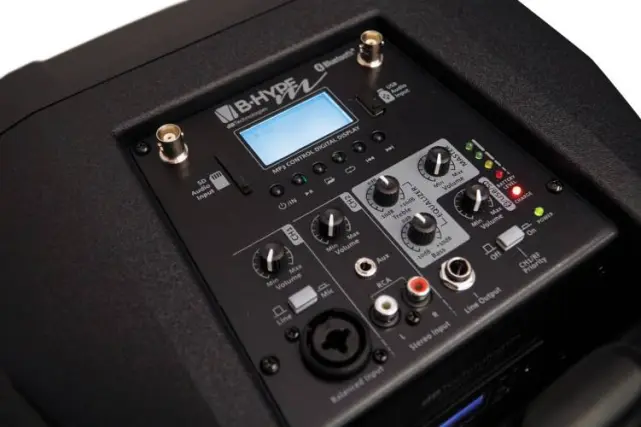

Volume Controls4x rotative knobs
(Mic/Line, Stereo In, Master, Media)
Controls1x Treble and 1x Bass Equalizers
Indicators2x LEDs (LIMITER, SIGNAL)
MainsVDE Socket
1x 3-position switch
(On, Off, Recharge)
Input
Mains connectionVDE
Signal IN1x Combo (XLR/TRS) balanced;
1x stereo RCS;
1xmini-Jack
Signal OUT1x TRS link
ControlsMaster Volume, EQ (treble, bass), CH1/RF priority
Media
Mechanics
HousingPolypropylene PP
Handles1x side, 1 on top (retractable)
GrilleFull grille
Width300 mm (11.81 in)
Height568 mm (22.36 in)
Depth301 mm (11.86 in)
Weight (without transmitter)12.5 kg (27 lbs.)

dB Technologies B-Hype Mobile HT - Handheld (dB Tech B-Hype Mobil- HT)
