dB Tech DVA S20DP
- DISCONTINUED

product discontinued

This product has been discontinued by the manufacturer. Please contact us to find a replacement.

*Discontinued

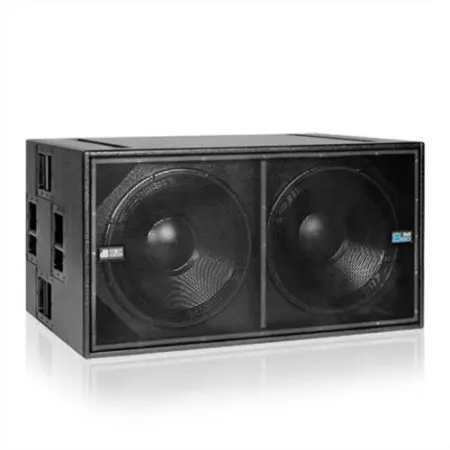

DVA S20DP Subwoofer, 2 x 18" Bassreflex

Featuring a dual 18” subwoofer pairing in a bass reflex housing, the DVA S20 delivers powerful performance, rendering frequencies as low as 25 hertz assertively and with impressive authority.

It is the perfect sub-bass provider for DVA S10/T4 systems and an excellent complement to DVA T4 mid-/high-range units in stacked arrays.

Thanks to the integrated Quick-Release-Pins, both DRK-10 and DRK-20 frames can be easily mounted to set up a ground stacked system.Made of sturdy birch multiplex covered in robust black textured lacquer,
the subwoofer housing is fronted with a rugged speaker grille.

The enclosure is easy to tote with its comfortable carrying handles.

Specifications:

Speaker Type: Active Bassreflex Subwoofer

Acoustical data
Frequency Response [+/- 3dB]: 35 - 120 Hz
Max SPL: 138 dB
Directivity: Omnidirectional, Cardiod Option with SDD Module
LF: 2x18 "
Voice Coil LF: 4 "

Amplifier
Amp Technology: Digipro®
Amp Class: Class D
LF Amp: 2000 W RMS
Cooling: Convection

Processor
Controller: Analog
Limiter: RMS, Peak, Thermal
Delay Option: SDD Module
Crossover Frequency LF-MF: 90, 120 Hz
LF-Xover out slope: 24 dB/Octave

Input
Mechanics
Housing: Multiplex birch plywood
Housing Design: Rectangular
Handles: 4x Per Side
Accessory: Wheels 100mm, Dust Cover
Rigging Points: 2xPick Points on top to fix DRK10/20 rigging frames
Width: 1100 mm (44 in)
Height: 580 mm (23.2 in)
Depth: 720 mm (28.8 in)
Weight: 84 kg (185.19 lbs)

db technologies DVA S20 DP (dB Tech DVA-S20DP)
