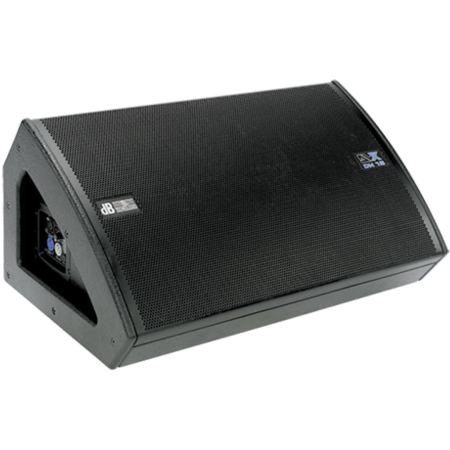

The DVX DM15 is a low-profile stage monitor. Unobtrusive yet very muscular, it is designed for sound reinforcement applications that require powerful low-end performance without added subwoofers. It sports a high-performance 15“ neodymium woofer and a 1.4“ neodymium compression driver, coupled to an aluminum“ CD horn.

Paired with high-output digipro digital power amps in a bi-amped confi guration,
the DVX DM15 belies its unobtrusive look with performance that is far from understated, delivering plenty of power to cover midsized to large stages.

An onboard controller manages the entire system, serving as an active equalizer, active x-over with phase and time alignment, and limiter.

The DSP also offers switchable system presets that adapt the monitor’s performance to suit the given application.

Made of rugged multiplex and coated with tough black lacquer, the cabinet sets up at two different angles.

It is also equipped with a pole mount, enabling the DVX DM15 to be set on a tripod or speaker pole

FEATURES:

- 2-Way Active Stage Monitor
- 40° x 60° directivity
- 15” Neodymium woofers, 3.5” voice coil
- 1.4” Neodymium driver, 2.5” voice coil, with
rotatable horn
- 750W RMS Class-D Digipro® amplifier
- 24 bit \ 48 kHz DSP
- Multiband, RMS/Peak, Thermal Limiter
- Flat / Monitor EQ presets

SPECIFICATIONS:

Technical Data
Speaker Type: 2-Way Active Stage Monitor

Acoustical data
Frequency Response [-10dB]50 - 20.000 Hz
Frequency Response [+/- 3dB]59 - 19.000 Hz
Max SPL: 132 dB
HF: 1.4 "
Type HF: Neodymium Compression Driver
Voice Coil HF: Titanium 2.5 "
Directivity: 60x40 °
Horn: CD Horn Aluminium
Rotatable Horn: YES
LF: 15 "
Type LF: Neodymium
Voice Coil LF: 3.5 "

Amplifier
Amp Technology: Digipro®
Amp Class: Class D
Power RMS: 750 W
Peak Power: 1500 W
Cooling: Convection

Processor
Controller: DSP 24 Bit/48 kHz
System Presets: Flat, Monitor
Limiter: RMS, Peak. Thermal, Multiband
Crossover Frequency MF-HF1320 Hz
Slope MF-HF24 dB/Octave

Mechanics
HousingP: Multiplex plywood
Housing Design: Low Profile Multifunctional
Angles Up: 35, 55 °
Rigging Points: 6x M8
Width: 734 mm (29.36 in)
Height: 338 mm (13.52 in)
Depth: 442 mm (17.68 in)
Weight: 21 kg (46.3 lbs)

dBTechnologies DVX-DM15 (dB Tech DVX DM-15)
