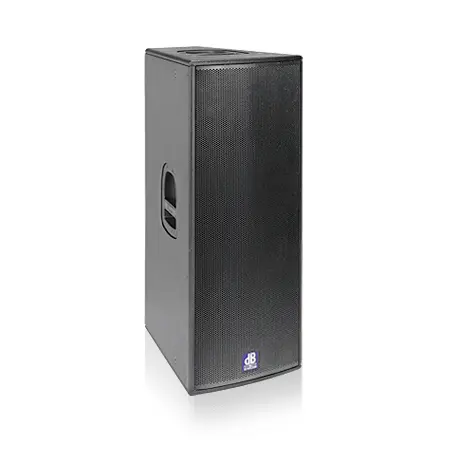

DB Tech FLEXSYS F212 (DB Technologies F-212 Flex System)

Quasi 3-Way Active Speaker 2x12” / 1” 1000 Watt RMS

The F212 is an active two-way system with considerable reach.

A very efficient and powerful mid-/high-range unit, it was designed to be combined with active subwoofers to construct high-performance PA systems.

Loaded with two 12“ woofers, this assertive cabinet throws sounds across considerable distances, performing exceedingly well in the low midrange.

Its excellent directivity comes courtesy of ADC (Acoustical Directivity Control) technology that also allows F212 enclosures to be clustered to achieve wider coverage.

The cabinet is driven by two bi-amped digipro® Class-D digital power amps with switched-mode power supplies offering PFC to ensure peak performance even under less-thanperfect live conditions.

A custom-engineered, array-enabled 60° x 40° CD horn, coupled to a next-generation 1“ neodymium compression driver, delivers assertive, high-definition response throughout the upper frequency range.

Active Speaker 1000 Watt RMS
Sited on top, the high-frequency horn is at a height perfect for stacked arrays, so ground stacks do not have to be placed on platforms or other raised structures. Thanks to the integrated tilt unit, aligning F212 towards the audience is very easy.

With this combination of muscular digital power amps and neodymium magnets, the F212 is a powerful cabinet whose ability to produce exceedingly high SPL belies its surprisingly light weight.

Specifications:
TECHNICAL DATA
Speaker Type: Quasi 3-Way Active Speaker
ACOUSTICAL DATA
Frequency Response [-10dB]: 50 - 20.000 Hz
Frequency Response [+/- 3dB]: 65 - 19.000 Hz
Max SPL: 132 dB
HF: 1 "
Type HF: neodymium compression driver
Directivity: 60 x 40 °
Horn: CD Horn
Rotatable Horn: YES
LF: 2x12" (with phase plug)
AMPLIFIER
Amp Technology: Digipro®
Amp Class: Class D
Power RMS: 1000 W
Peak Power: 2000 W
PROCESSOR
Controller: DSP 24bit/48kHz
System Presets: Flat, Clustered
Limiter: Dual Active Peak, RMS, Thermal
Crossover Frequency LF-HF: 1800 Hz
Slope LF-HF: 24 dB/Octave
INPUT
MECHANICS
Housing: Multiplex
Width: 360 mm (14.4 in)
Height: 930 mm (37.2 in)
Depth: 500 mm (20 in)
Weight: 31.5 kg (69.45 lbs)
