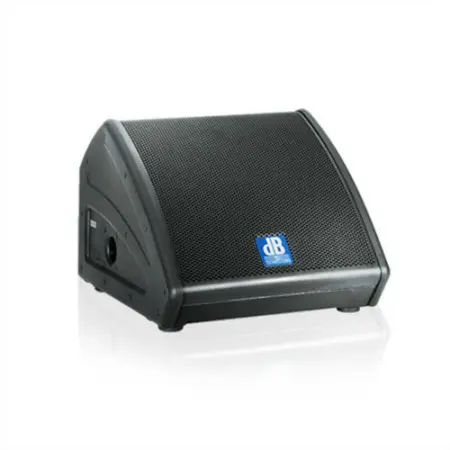

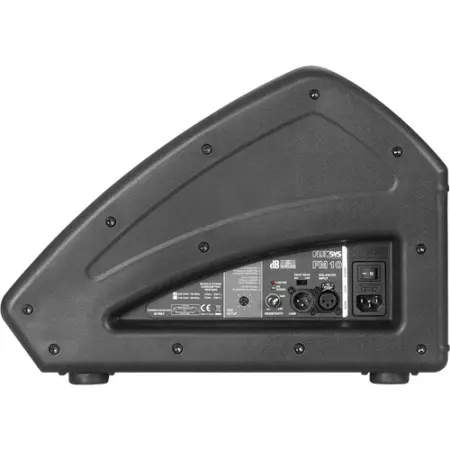

dB Tech Flexsys FM10

FLEXSYS FM10
Active Coaxial Stage Monitor 10" / 1" 400 Watt

The FM 10 renders vocals with such remarkable power, dynamics, and precision that it can serve as a compact fullrange system.

This and its extended bass response make it the ideal monitor for vocals and keyboards.

FM Series monitors feature a powerful DSP that offers a crossover, digital multiband limiters, phase correction, and eight variable presets that serve to adapt the monitor to the varying demands of vocalists, instrumentalists, and audio playback applications.
digipack digital amplifiers — from a world leader in technology.
Our fully integrated digipack™ modules were developed specifically for use in very compact active systems, based on the innovative technology designed for our digipro® power amps and used in our high-end DVA and DVX series products.

The digipack™ power amp modules are rated at more than 90% efficient, that means that they have no need of built-in fans and are extremely reliable and stable in operation.

Moreover, digipack™‘s components are protected by our tried and tested built-in limiters, and our carefully designed circuitry ensures that the output remains even and transparent — the most important qualities for maximum listening pleasure — even in noisy environments.

Specifications:


Technical Data
Speaker Type: 2-Way Active Coaxial Stage Monitor

Acoustical data
Frequency Response [+/- 3dB]: 72 - 20.000 Hz
Max SPL: 120 dB
HF: 1 "
Type HF: compression driver
Horn: CD Horn
LF: 10"

Amplifier
Amp Technology: Digipack™
Amp Class: Class D
Power PRG: 400 W
Peak Power: 800 W

Processor
Controller: DSP 24bit/48kHz
System Presets: 8 presets
Limiter: Dual Active Peak, RMS, Thermal

Input
Mechanics
Housing: Multiplex with H.E.T coating, reinforced
Housing Design: Multifunctional, Low Profile
Angles Up: 2 monitor angles °
Width: 370 mm (14.8 in)
Height: 290 mm (11.6 in)
Depth: 410 mm (16.4 in)
Weight: 12.8 kg (28.22 lbs)

db technologies Flex sys FM10 (dB Tech Flexsys FM 10)
