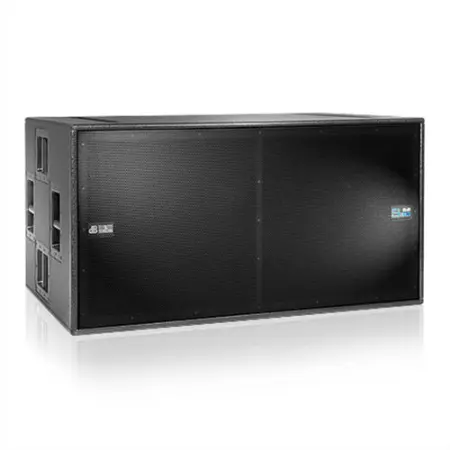

dB Tech S30N
- DISCONTINUED

product discontinued

This product has been discontinued by the manufacturer. Please contact us to find a replacement.

*Discontinued

Featuring a dual 18" subwoofer pairing in a bass reflex housing, the DVA S30 packs a muscular, ultra lowfrequency punch.

It delivers very powerful performance indeed with a range extending down to the lowest frequencies.

This sub-bass powerhouse is the perfect addition to large PAs and an excellent complement to DVA T12 mid-/high-range units in stacked arrays.

Bass reflex horn housing
This sophisticated hybrid design brings together the benefits of bass reflex and horn systems in a compact housing engineered to render low frequencies with high SPL.

The two baffle boards are arrayed in the form of a V.
They guide the central bass reflex channel‘s sound energy into the horn‘s port.
This funneling action is smooth and uniform, greatly increasing its range.

The high-quality birch multiplex housing is covered in robust black textured lacquer and equipped with eight grips.

On the back is a transport dolly that removes easily via quick release pins to keep the wheels from rattling.

Specifications:

Speaker Type: Active Bassreflex-Horn Subwoofer

Acoustical data
Frequency Response [- 10dB]: 41 - 120 Hz
Max SPL: 141 dB
Directivity: Omnidirectional, Cardiod Option with DSP setup
LF: 2x18 "
Voice Coil LF: 4 "
Amplifier
Amp Technology: Digipro® G2
Amp Class: Class D
Power Supply: 3 kW SMPS
LF Amp: 3000 W RMS
Cooling: Convection

Processor
Controller: DSP 56 bit
AD/DA Converter: DSP 24 bit/48 kHz
System Presets: X-Over,Delay
Phase: 0, 180 °
Limiter: RMS, Peak, Thermal
Delay Option: 0-4.5 ms internal
Crossover Frequency LF-MF: 75-120Hz | steps of 5Hz
LF-Xover out slope: 24 dB/Octave

Input
Mechanics
Housing: Multiplex birch plywood
Housing Design: Rectangular
Handles: 4x Per Side
Accessory: Dolly, Wheels 100mm, Dust Cover, Rain Cover
Rigging Points: 2xPick Points on top to fix DRK10/20 rigging frames
Width: 1100 mm (44 in)
Height: 580 mm (23.2 in)
Depth: 720 mm (28.8 in)
Weight: 83 kg (182.98 lbs)

db technologies S30 N (dB Tech S30-N)
