DBX 1046
- DISCONTINUED

product discontinued

This product has been discontinued by the manufacturer. Please contact us to find a replacement.

*Discontinued

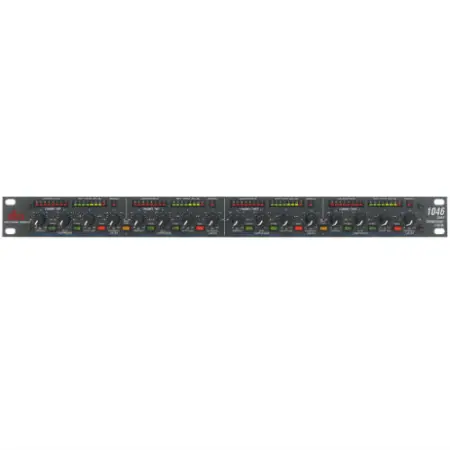

The DBX 1046 Quad Compressor Limiter is designed to provide the audio professional with 4 channels of great sounding dbx compression. Smooth classic dbx OverEasy or hard knee compression perfectly suited for use on individual tracks of your multitrack recorder. Separate channels can be individually interfaced and used for entirely independent purposes. PeakStopPlus protects your system from violent peaks that can KO your P.A. or studio monitors. Each channel features threshold, OverEasy or hard knee compression, ratio, input/output meter, output gain, hard-wire bypass, stereo link combining channels 1&2 and 3&4 for 2 channels of true stereo compression, balanced gold-plated XLR and 1/4" inputs and outputs, and switchable +4dBu or -10dBV operating level. So whether you need to control the level, placement in the mix, or overall characteristics of 4 independent signals or control the gain leveling on a couple of stereo pairs, the dbx 1046 Quad Compressor Limiter is for you.

dbx 1046 Quad Compressor Limiter Specifications:

  • INPUT
  • Connectors: XLR and 1/4" TRS (Pin 2 and tip hot)
  • Type: Electronically balanced/unbalanced, RF filtered
  • Impedance: Balanced > 40 kOhm, unbalanced >20 kOhm
  • Max Input Level: > +22 dBu balanced or unbalanced
  • CMRR: Typically >50 dB at 1 kHz

    OUTPUT
  • Connectors: XLR and 1/4" TRS (Pin 2 and tip hot)
  • Type: Servo-balanced/unbalanced, RF filtered

dbx 1046 Quad Compressor Limiter Features:

  • 4 independent channels
  • Stereo linkable in two pairs
  • PeakStopPlus limiting control
  • Independent Threshold and Release controls
  • Switchable OverEasy or Hard Knee compression
  • Classic dbx compression
  • Gold-plated XLR and 1/4" inputs and outputs
  • True RMS level detection
  • Precision metering
  • Switchable +4dBu or -10dBV operation

We carry the full line of DBX. If you need a piece that is not listed on our website, check here: https://www.dbxpro.com/products.php and call for a price.
