DN-501C
CD / Media Player

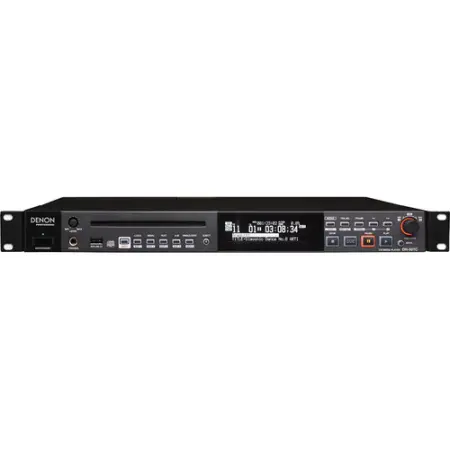

Introducing the DN-501C, a broadcast–grade CD/USB/Media Player, further bolstering the 500-series – the new face of workhorse, affordable A/V products for professional installation by Denon Professional. Conveniently tooled in a space- saving 1 RU chassis, the DN-501C further emphasizes Denon Pro’s commitment to providing professional feature-rich installation products, at affordable prices, to the contracting industry. With a bright, highly visible OLED display, a slot-in CD Data drive and USB port for media playback, and pitch and master key control, the 501C lends itself to a myriad of applications from FOH sound, to broadcast, to fitness/dance and beyond.

The DN-501C is the ideal choice for installations no matter the environment. With advanced control possibilities, accessing your device and controlling media has never been easier, including full RS-232c serial implementation for large installations and individual control via the included IR remote. And our new switching power supply allows for easy- integration into applications and environments that find themselves outside the realm of 110V AC power.

On the output side of the device, standard unbalanced RCA’s and professional digital I/O’s complement the balanced XLR analog outputs, complete with trim control so you always have an appropriate level, no matter what your signal amplification needs are.

The front-panel USB jack further expands your media playback capabilities by allowing the connection of USB thumb / HDDs for instant access to many media formats, including WAV, MP3, AAC, and AIFF. Additionally, the USB port is iPod and iPhone ready, allowing for connection and playback of your entire iTunes library in direct digital quality.

Furthermore, when coupled with Denon Professional’s free Pitch Key App (available on the AppStoreSM) a fitness or aerobics instructor, or band teacher/music student can take control of playback by adjusting Pitch, Tempo, or both of any audio file in their device.

With extra playback features like a dedicated CUE button, various repeat and random playback modes, program playback, high-quality mechanism, the DN-501C carries the torch for quality Denon Professional audio playback.
Compatible with Denon Professional’s Pitch Key App for iOS devices

Features:

Supports CDDA/WAV/MP3/AAC/AIFF audio file formats
USB mass storage device playback
Direct digital playback of iPod/iPhone via USB
OLED high contrast display
Slot-in CD drive
3-phase brush-less motor for spindle
Full professional outputs incl. bal­anced XLR analog and XLR AES/EBU
Dedicated CUE button
+16% (0.1 % step) pitch control for CD and USB file with/without master key control
Program play
Supports copying CD data to USB storage as WAV file (ripping)
RS-232c serial controllable
IR controllable with included IR remote control
100-230V switching power supply
Compatible with the Denon Pro RC-F400S Hot Start remote
Removable rack ears

Specifications:

Digital Audio System
System: CD/Media Player
Compatible media: CD Media, USB flash memory ,USB HDD, iPod/iPhone
Playable formats, file systems
CD: CD-DA (CD TEXT), CD-ROM (ISO9660)
USB: FAT16/FAT32/HFS+

Playable WAV Format
Extension: WAV
Resolution: 16 bit, 24 bit
Sampling frequency: 96, 48, 44.1 kHz

Playable AIFF Format
Extension: AIFF, AIF
Resolution: 16 bit, 24 bit
Sampling frequency: 96, 48, 44.1 kHz

Playable MP3 Format
Extension: MP3
Bit rate: 32 – 320 kbps and VBR
Sampling frequency: 48, 44.1 kHz

Playable AAC Format
Extension: M4A
Compression method: AAC-LC
Bit rate: 64 – 320 kbps and VBR
Sampling frequency: 48, 44.1 kHz

Number of channels: 2 (stereo), 1 (mono)
Audio frequency characteristics: 20 Hz - 20 kHz (±0.5 dB)
S/N ratio: More than 105 dB (A-Weighted)
Total harmonic distortion: Less than 0.005 %
Dynamic range: More than 105 dB (for 24 bit WAV playback)
Channel separation: Less than –106 dB
Variable pitch width: –16 % – +16 % (0.1% step)
Variable Output trim adjustment width: ±2.0dB (0.1dB step)

Output
0 dBu=0.775 Vrms
0 dBV=1.0 Vrms
BALANCED ANALOG OUT L/R
Type: XLR(1:GND, 2:Hot, 3:Cold)
Load impedance: Over 600 Ω/ohms
Output level: +6dBV (+8.23dBu)(600Ω/ohms Load)
Output level setting: +24dBu, +20dBu, +18dBu,+6dBV (0dBFS Reference)

UNBALANCED ANALOG OUT L/R
Type: RCA terminal
Load: impedance Over 10 kΩ/kohms
Output level: +6dBV (10kΩ/kohms Load)
Output level setting: +10dBV, +6dBV, +4dBV (0dBFS Reference)

BALANCED DIGITAL OUT
Type: XLR(1:GND, 2:Hot, 3:Cold)
Output impedance: 110 Ω/ohms
Format: IEC-60958(AES/EBU)

UNBALANCED DIGITAL OUT
Type RCA terminal
Output impedance: 75 Ω/ohms
Standard output level: 0.5 Vp-p
Format: IEC-60958(COAXIAL)

HEADPHONE OUT: 20 mW/32 Ω/ohms

Others
Maximum storage capacity: Up to 2 TB
Maximum file size: 2 GB
Maximum number of files: 2000 files (for 1 folder)
Maximum number of folders: 1000 folders
Maximum number of folder hierarchies: 8 (under the root directory)
Maximum file name length: 255 characters
Maximum folder name length: 255 characters

General
Power supply
AC 120 V, 60 Hz (U.S.A and Canada models)
AC 230 V, 50/60 Hz (European, U.K and Asia/Pacific models)

Power consumption
30 W
0.4 W (standby)

Environmental conditions
Operating temperature: 5 – 35 °C
Operating humidity: 25 – 85 %, no condensation
Storage temperature: –20 – 60 °C

Denon Professional DN501C (Denon DN 501C)
