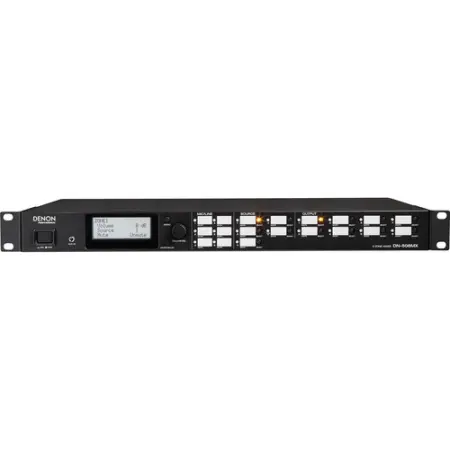

DN-508MX
8 Zone Mixer

Recognizing a crucial, unfulfilled need in the professional market for products that can command and manage a wide variety of audio sources through a single unit, the DN-508MX and 508MXA Zone Mixers are refreshingly uncomplicated, high-performance solutions for controlling and routing up to eight audio sources in multi-room venues. Special attention has been paid to the design of the front panel interface to make them intuitive and easy to operate, which makes the “learning curve” on these products very short. The 508MXA has on-board zone amplification for added flexibility when configuring a specific system with different requirements.

Typical applications include restaurants, hotels, museums, nightclubs, sports bars and large corporate offices. Both mixers have remote controllability via RS-232C and IP for the commercial installations. The DN-508MX and 508MXA also have several features dedicated for professional use such as a professional grade head-amp, MIC/LINE PAD, full BTL balanced outputs, 3-band EQ for inputs, 5-band EQ for outputs, Priority, Delay, Dynamics, system control application (Web remote), and scheduling function to operate automatically for optimum energy efficiency.

A Web-based GUI makes it simple to control every function of the unit, from whatever device is most convenient for the user.

Features:

6 mic/line inputs
4 ST inputs
1 aux input on front and rear
8 zone outputs
Professional-grade grounding and sound quality
Remote controllability using TCP/IP, RS-232, and RS-422
3-band equalizer for all inputs
5-band equalizer for all zone outputs
Delay and dynamics function for all zone outputs
Package Contents
DN-508MX
Power Adapter
Euroblock Connectors
Quick Start Guide
Safety and Warranty Manual

Specifications
Frequency Response: 20 Hz – 20 kHz (+0.5 dB)
Dynamic Range: > 109 dB (A-weighted)
Signal-to-Noise Ratio: > 89 dB (A-weighted)
Headroom: > 20 dB
Mic Input EIN: < -127 dBu (Rs = 150 Ω, DIN)
Mic Input CMRR: > 80 dB
Maximum Gain: 88 dB (Mic Input to Master Output)
Channel Separation: < -100 dB
THD+N
Mic/Line Inputs: < 0.05%
ST Inputs: < 0.01%

Analog Inputs
Mic Inputs
Maximum: -40 to -20 dBu (+4 dBu)
Unity: -60 to -40 dBu (-16 dBu)

Line Inputs
Maximum: -20 to 0 dBu (+24 dBu)
Unity: -40 to -20 dBu (+4 dBu)

ST Inputs
Maximum: +18 dBV
Unity: 0 dBV

Aux Inputs
Maximum: +18 dBV
Unity: 0 dBV

Analog Outputs
Zone Outputs
Maximum: +24 dBu
Unity: +4 dBu

Effects
Equalization (3-Band, Inputs)
SHH 100 Hz – 20 kHz (+18 dB)
PEQ 100 Hz – 20 kHz (+18 dB), Q: 0.1–63.0
SHL 20 Hz – 20 kHz (+18 dB)

Equalization (5-Band, Outputs)
High PEQ 100 Hz – 20 kHz (+18 dB), Q: 0.1–63.0
Mid-High PEQ 100 Hz – 20 kHz (+18 dB), Q: 0.1–63.0
Mid PEQ 100 Hz – 20 kHz (+18 dB), Q: 0.1–63.0
Mid-Low PEQ 100 Hz – 20 kHz (+18 dB), Q: 0.1–63.0
Low PEQ 20 Hz – 20 kHz (+18 dB), Q: 0.1–63.0

Delay
Attenuation 0–1000 ms

Automatic Gain Control (AGC)
Compensation 1–5
Response Time 100–500 ms
Noise Gate < -80 dBFS

Priority Attenuation (1st & 2nd priorities)
Threshold -74 to -20 dBFS
Attenuation -∞ to 0 dB
Attack Time 0–300 ms
Hold Time 1–1960 ms
Release Time 3–4270 ms

Dynamics (Compressor/Limiter)
Threshold -92 to -20 dBFS
Ratio 1.0:1 – 20.0:1, ∞:1
Attack Time 0–120 ms
Release Time 3–4270 ms
Gain 0 to +20 dB
Knee Hard, 1–5

Auto Fade Out/In for Source Selector
Attenuation -30 dB
Attack Time 100 ms
Hold Time & Mixing 100 ms
Release Time 100 ms

Communication
RS-232C
Connectors: 9-pin D-Sub female connector (Remote input), 9- pin D-Sub male connector (Remote Extend output)
Speed: 9600/38400 bps
Power: +5 V via D-Sub connection

RS-422
Connector: RJ-45
Speed: 38400 bps
Terminal: 110 Ω on/off
Power: +5 V via RJ-45 connection

Ethernet
Connector: LAN port
Standards: Ethernet 10/100 Base

Level Indicators
Mic/Line: 1 LED (green-amber-red) per mic/line input
Source: 1 LED (green-amber-red) per ST input
Output: 1 LED (green-amber-red) per zone
Peak Indication: -1 dB to 0 dB

Connections
(6) 3-pin Euroblock inputs (1 hot, 1 cold, 1 ground)
(1) stereo RCA auxiliary input
(1) stereo 1/8” (3.5 mm) auxiliary input
(4) stereo RCA ST inputs
(4) 5-pin Euroblock outputs (2 hot, 2 cold, 1 ground)
(1) LAN port
(1) RJ11/RJ14 port, RS-422
(1) 9-pin D-Sub female connector, RS-232C
(1) 9-pin D-Sub male connector, RS-232C
(1) IEC power input

Operation Conditions
Temperature: 41–95ËšF / 5–35ËšC
Humidity: 25–85%, non-condensing

Power
Connection: IEC
Requirement: 100–240V AC, 50/60 Hz
Consumption: 30 W

Dimensions (width x depth x height, with rack ears)
19.0” x 13.5” x 1.8”
482 mm x 344 mm x 46.3 mm

Weight
8.55 lbs.

Denon Professional DN 508MX (Denon DN508MX)
