More Than You Hoped For

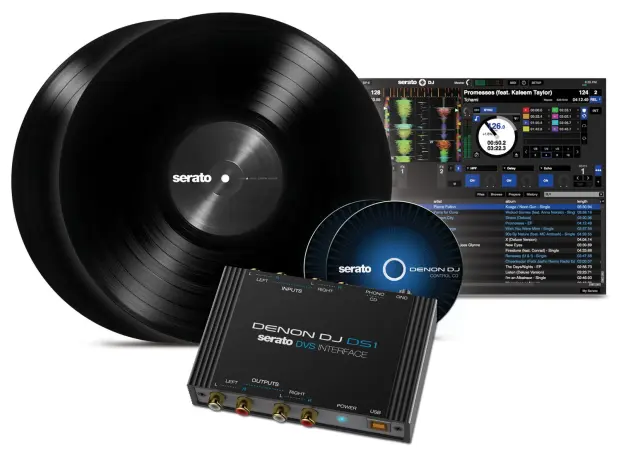

Throw your assumptions out the window—the DS1 is a breakthrough interface for users of Serato NoiseMap™—the system used to control a Serato-based digital music library when you’re using a turntable or CD player. The DS1 is plug-and-play with Serato DJ, extending Denon DJ’s famous audio quality and reliability to club DJs and turntablists who prefer the feel of vinyl, but still want the flexibility that a digital music library provides.

It Specializes in Hookups

At the heart of the DS1 is a bi-directional audio interface with two sets of RCA stereo inputs for turntables or professional CD players. As DJs manipulate the vinyl or CD NoiseMap signal, Serato DJ software mirrors the control signal—controlling digital tracks on-screen in real-time for beatmatching, cueing, scratching, and track juggling. Playback audio is distributed by the DS1 to a mixer or loudspeaker system in studio-grade 24-bit quality via two sets of RCA stereo outputs. In other words, connect anything you need and the DS1 will always send out a great signal—clean, clear and true to the music.

Features:

Premium Digital Vinyl System (DVS) interface for Serato DJ

Interfaces turntables and CD players using Serato NoiseMap with a Serato DJ-based digital music library

Plug and play with Serato DJ and Serato DVS Expansion Pack—no purchase necessary

(2) sets of stereo RCA inputs and outputs for left and right decks
Studio-grade 24-bit digital to analog conversion

Supports 44.1kHz, 48kHz, and 96kHz sampling rates

Dedicated grounding post for use with turntables

Single USB cable connection to a computer for power and audio

Includes (2) Serato NoiseMap control tone vinyl records and CDs

Includes USB and stereo RCA cables

Rugged, all-metal construction

Specifications:

Line Inputs 1–4 (unbalanced RCA):

Frequency Response: 20 Hz – 20 kHz (+0.02dB)
Dynamic Range: 103 dB (A-weighted)
Signal-to-Noise Ratio: 100 dB (1 kHz, +6 dBV (2Vrms), A-weighted)
THD+N: 0.002% (1 kHz +6 dBV (2Vrms))
Max Input Level: +9 dBV
Input Impedance: 47 kΩ
Phono Inputs 1–4 (unbalanced RCA):

Dynamic Range: 81 dB (A-weighted)
THD+N: 0.022% (1 kHz, -27dBV)
Max Input Level: -26dBV (53 mVrms)
Input Impedance: 47 kΩ
Line Outputs 1–4 (unbalanced RCA):

Frequency Response: 20 Hz – 20 kHz (+0.07 dB)
Dynamic Range: 100 dB (A-weighted)
THD+N: 0.007% (1 kHz, -1 dBFS)
Maximum Output Level: +6 dBV
Output Impedance: 100 Ω
Note: All specifications above measured at 20 kHz bandwidth.
Unit Size:

4.7 (W) x 3.0 (D) x 0.9 (H) (Inches)
119.38 (W) x 76.2 (D) x 22.86 (Millimeters)

Unit Weight:
0.55 lbs
0.25 kg

Supported Operating Systems:

Mac OS X: 10.8, 10.9, 10.10
Windows: 7, 8, 8.1

Supported Processors:
i3, i5 or i7 32 & 64 bit: 1.07 GHz+
Core 2 Duo 32 bit: 2.0 GHz+ 64 bit: 2.4 GHz+
Minimum RAM:

32 bit OS: 2 GB
64 bit OS: 4 GB
USB:

1 available USB 2.0 port
Note: Intel Processors are required for use with Serato DJ Software

Denon DJ DS 1 (Denon DS-1)
