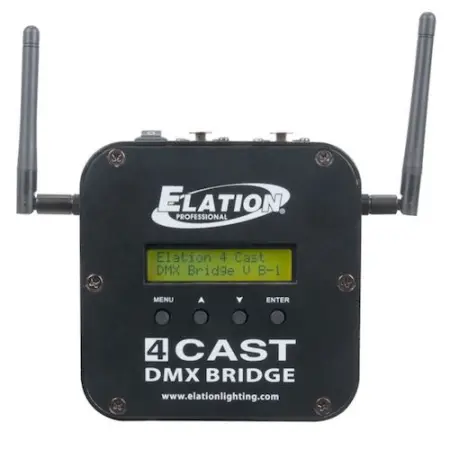

Elation 4Cast DMX Bridge
- DISCONTINUED

product discontinued

This product has been discontinued by the manufacturer. Please contact us to find a replacement.

*Discontinued

4Cast DMX Bridge™ is a compact 4-universe wireless device which seamlessly bridges WiFi, Art-Net, sACN, and E-FLY™ (Elation’s wireless DMX solution) signals to wirelessly control compatible DMX devices, an ideal solution for small production events, nightclubs, bars or any event or venue which requires hidden data cables.

4CAST DMX BRIDGE creates a private standalone 2.4 GHz DSSS (Direct Sequence Spread Spectrum) WiFi network, which coexists in busy RF environments alongside other wireless technologies. No existing network infrastructure is required, or it connects to an external network. 4CAST DMX BRIDGE sends constant and reliable wireless DMX signals to compatible DMX devices via DMX-512, Art-Net, sACN, or E-FLY.

Features include separate WiFi and an E-FLY wireless antenna, (3) 5pin DMX outputs, a mini USB port, a 4-button control panel, an LCD system menu display with an LED network activity signal indicator, on/off switch, an external DC 9-12V power supply, a mini omega bracket for easy clamp/truss mounting, a magnetic back for easy attachment to metal surfaces, and easy configuration from a PC connected via USB Mini B port using the 4Cast Bridge Setup Windows app or over Wi-Fi using the ELATION 4Cast Config iOS app.

Features:

Seamless Wireless Bridge To DMX Compatible Devices
Supports Standard Network Protocols, Art-Net, sACN and eFly
Private Standalone 2.4 GHz DSSS WiFi Network
No Existing Network Needed or Connect to External Network
Supports up to 4 DMX Universes (3 wired and 1 E-FLY wireless)
Control Compatible eFly Devices up to 2,500 Feet Away
14 E-FLY Wireless Channels
Easy Clamp/Truss Mounting
Magnetic Back for Easy Attachment to Metal Surfaces
Easy Configuration Using Windows or iOS Apps
Dedicated control App, "eCast", available in the Apple App Store

eCast compatibility: Compatible with iPad only. Requires iOS 9.3 or later.

Specifications:

CONTROL / CONNECTIONS
Private Standalone 2.4GHz DSSS WiFi Network*
*Up To 75 feet (22.8m) WiFi Range
(4) DMX Universes
Supports Standard Networking Protocols,
DMX-512, Art-Net, sACN, and eFly
**Up To 2,500 feet (762m) E-FLY Range
4Cast Bridge Windows and iOS Apps
4-Button Control Panel
LCD System Menu Display
Separate WiFi and E-FLY Antennas
(3) 5pin DMX Outputs
(1) Mini USB Port

SIZE / WEIGHT
Length: 4.92" (125mm)
Width: 6.88" (175mm)
Vertical Height: 2.44" (62mm)
Weight: 1.06 lbs. (0.48kg)

ELECTRICAL
DC 9-12V 1Amp

APPROVALS
CE | cETLus

Elation 4cast Dmx bridge (Elation 4CA100)
