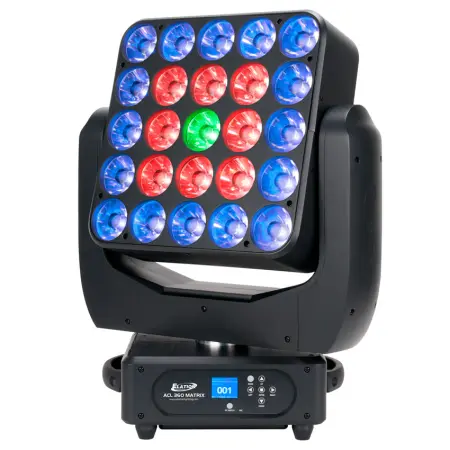

The new ACL 360 MATRIX™ is a versatile moving head effect luminaire featuring (25) individual 15W RGBW 4-in-1 LEDs and the new advanced collimator optic lens, which combined produce a laser-like homogenized 4° color-changing beam from each lens. Features include fast and precise16-bit continuous full 360° pan and tilt rotation, full individual pixel control, strobe, and selectable dimming curve effects, DMX, RDM (Remote Device Management), KlingNET™ and Art-NET support, 3/5pin XLR, powerCON, and RJ45 ethernet in/out connections, (6) button control full color 180° reversible menu display, 425W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).
SEE ALSO
ACL SERIES (click for more info)
FEATURES
Versatile 14° Moving Head Effect Luminaire
New Advanced Collimator Lens
(25) Pixel Control RGBW 4-in1 LEDs
Laser-Like Homogenized 4° Color Changing Beams
Fast and Precise 16-Bit Continuous 360° Pan/Tilt Rotation
Strobe and Selectable Dimming Curve Effects
DMX, RDM, KlingNET™ and Art-NET (DMX Over Ethernet) Support
Flicker Free Operation for Broadcast TV and FILM
SOURCE
(25) 15W RGBW 4-in-1 LEDs
100,000 Hour Average LED Life
PHOTOMETRIC DATA (14° Full ON)
77,344 LUX 7,185 FC @3.3’ (1m)
70,370 LUX 6,537 FC @6.6’ (2m)
54,413 LUX 5,055 FC @9.8’ (3m)
40,505 LUX 3,763 FC @13.1’ (4m)
29,722 LUX 2,761 FC @16.4’ (5m)
EFFECTS
Individual Pixel Control
Strobe and Selectable Dimming Curves
COLOR
RGBW
CONTROL / CONNECTIONS
(3) DMX Channel Modes (17 / 19 / 115)
RDM (Remote Device Management)
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
3pin/5pin DMX In/Out
RJ45 Ethernet In/Out (Art-NET)
powerCON Power In/Out
SIZE / WEIGHT
Length: 19.0” (481mm)
Width: 13.8” (350mm)
Vertical Height: 23.0” (583mm)
Weight: 42.0 lbs. (19 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
425W Max Power Consumption
5F to 113°F (-15°C to 45°C)
APPROVALS / RATINGS
CE | IP30
INSTALLATION
Rigging: Clamps (Not Included)
Working Position: Flat Surface / Inverted (180°)
INCLUDED ITEMS
Omega Brackets
powerCON Cable
