The new ACL 360 ROLLER™ is a unique moving head effect luminaire featuring a total of (20) individual 15W RGBW 4-in-1 LEDs positioned equally on four individual arrays attached together. Features include the new advanced collimator optic lens that produces a laser-like homogenized 4° color changing beam from each LED which combined produce a 21° beam angle from each bar, fast and precise16-bit continuous full 360° pan and tilt rotation, full individual pixel control, strobe, and selectable dimming curve effects, DMX, RDM (Remote Device Management), KlingNET™ and Art-NET support, 3/5pin XLR, powerCON, and RJ45 ethernet in/out connections, (6) button control full color 180° reversible menu display, 280W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).
FEATURES
Unique 21° Beam Moving Head Effect Luminaire
New Advanced Collimator Optic Lens
(20) Pixel Controlled 15W RGBW 4-in-1 LEDs
Laser-Like Homogenized 4° Color Changing Beams
Fast and Precise 16-Bit Continuous 360° Pan/Tilt Rotation
Strobe and Selectable Dimming Curve Effects
RDM, KlingNET™ and Art-NET (DMX Over Ethernet)
Flicker Free Operation for Broadcast TV and FILM
SOURCE
(20) 15W RGBW 4-in-1 LEDs
100,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA (14° Full ON)
37,630 LUX 3,496 FC @3.3’ (1m)
17,700 LUX 1,644 FC @6.6’ (2m)
11,240 LUX 1,044 FC @9.8’ (3m)
7,571 LUX 703 FC @13.1’ (4m)
5,172 LUX 480 FC @16.4’ (5m)
EFFECTS
Individual Pixel Control
Strobe and Selectable Dimming Curves
COLOR
RGBW
CONTROL / CONNECTIONS
(3) DMX Channel Modes (17 / 19 / 95)
RDM (Remote Device Management)
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
3pin/5pin DMX In/Out
RJ45 Ethernet In/Out (KlingNET™ / Art-NET)
powerCON Power In/Out
SIZE / WEIGHT
Length: 18.9” (480.7mm)
Width: 10.2” (260mm)
Vertical Height: 21.3” (541mm)
Weight: 44.0 lbs. (20 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
280W Max Power Consumption
5F to 113°F (-15°C to 45°C)
APPROVALS / RATINGS
CE | IP30
INSTALLATION
Rigging: Clamps (Not Included)
Working Position: Flat Surface / Inverted (180°)
INCLUDED ITEMS
Omega Brackets
powerCON Cable

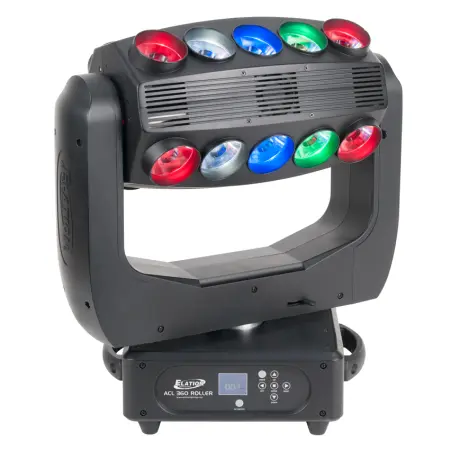

Elation Professional ACL 360 Roller
(Elation ACL360 Roller)
