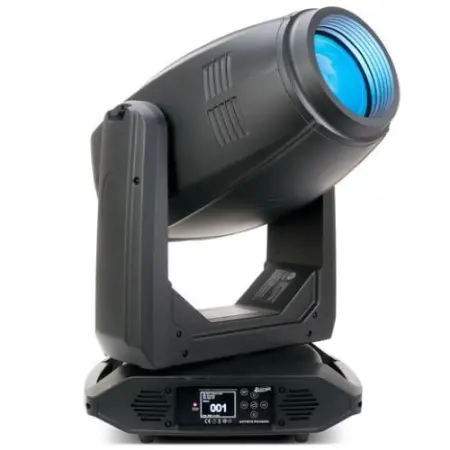

The Artiste Picasso™ is a full-featured innovative theatrical-grade luminaire featuring a new 620W 6,800K Cool White LED engine with advanced optics that deliver over 23,000 total lumen output, ultra wide and fast 7° to 55° zoom, a full CMY color mixing system producing a full spectrum of shades from pastels to rich saturated colors, linear CTO color correction, 6 dichroic colors including a high 87 CRI filter, 7 rotating/indexing glass and 7 static-stamped metal interchangeable gobos, 4 rotating full blackout framing blades with +/- 45° individual blade rotation, full 360° bi-directional animation wheel, 4-facet and linear rotating prisms and 2 frost filters, internal color, framing, prism, and frost macros, motorized iris with variable pulse effects, motorized focus and auto-focus feature, 16-bit pan, tilt, and dimming control, variable dimming curve modes, high speed electronic shutter and strobe, adjustable LED refresh rate and gamma brightness for flicker free operation for TV and FILM, silent fan mode for noise-sensitive applications, DMX, RDM (Remote Device Management), Art-NET™, and sACN protocol support, Elation’s E-FLY™ internal wireless DMX transceiver, locking 5pin XLR DMX, RJ45 ethernet, and power connections, full color 180° reversible LCD control panel, battery backup for display power, and a multi-voltage universal auto switching power supply (100-240v).

Features:
620W 6,800K Cool White LED Engine
23,000+ Total Lumen Output
7° to 55° Motorized Zoom
Full CMY Color Mixing System and Linear CTO Color Correction
6 Dichroic Colors including a High 87 CRI Filter
7 Rotating/Indexing Glass and 7 Static-Stamped Metal Interchangeable Gobos
4 Rotating Full Blackout Framing Blades
Full 360° Bi-Directional Animation Wheel
4-Facet and Linear Rotating Prisms and 2 Frost Filters
Internal Color, Framing, Prism, and Frost Macros
Motorized Iris with Variable Pulse Effects
Motorized Focus and Auto-Focus Feature
16-bit Pan, Tilt, and Dimming Control
Variable Dimming Curve Modes
High Speed Electronic Shutter and Strobe
Adjustable LED Refresh Rate Frequency and Gamma
Flicker Free Operation For Broadcast TV and FILM
Silent Fan Mode
DMX, RDM, Art-NET, and sACN Protocol Support
Elation's E-FLY™ Internal Wireless DMX Transceiver
Low Heat, Quiet Operation, Hibernation Mode (Power Save)

Specifications:
SOURCE
620W 6,800K Cool White LED Engine
30,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA
23,000+ Total Lumen Output
CRI 73 (87+ with HCRI filter)

EFFECTS
7° - 55° Motorized Zoom
4 Rotating Full Blackout Framing Blades
Full 360° Bi-Directional Animation Wheel
4-Facet and Linear Rotating Prisms
2 Frost Filters
Internal Color, Framing, Prism, and Frost Macros
Motorized Iris with Variable Pulse Effects
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
Adjustable LED Refresh Rate Frequency and Gamma

COLOR
Full CMY Color Mixing System
Linear CTO Color Correction
6 Dichroic Colors including High 87 CRI Filter

GOBOS
2 Gobo Wheels
7 Rotating / Indexing Interchangeable Glass Gobos
7 Interchangeable Static-Stamped Metal Gobos

CONTROL / CONNECTIONS
2 DMX Channel Modes (36 / 62 channels)
16-bit Pan, Tilt, and Dimming Control
Motorized Focus and 5-15m Auto-Focus Presets
DMX, RDM, Art-NET, and sACN Protocol Support
Elation's E-FLY™ Internal Wireless DMX Transceiver
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
Hibernation Mode (Power Save)
Locking 5pin XLR DMX, RJ45 Ethernet, and Power
With Wired Digital Communication Network

SIZE / WEIGHT
Length: 18.0" (457mm)
Width: 21.5" (544.5mm)
Vertical Height: 29.8" (757.5mm)
Weight: 84.0 lbs. (38.1kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
1000W Max Power Consumption
14°F to 113°F (-10°C to 45°C)

APPROVALS / RATINGS
CE | cETLus | IP20

Elation Professional EAP325 (Elation EAP-325)
