Elation CUEPIX 16 IP

$1,840.00 new
Reviews: 0 Description Financing Q&A: 0
or $167/mo $0 Shipping, $0 Tax


Available - Call to confirm exact lead time Low Price Guarantee


or $ 167/mo $0 Shipping, $0 Tax
Product Description

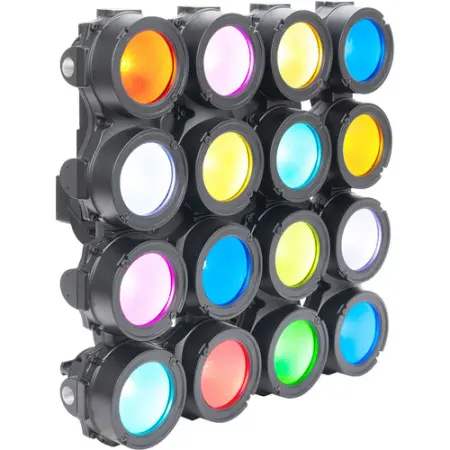

A versatile IP65 outdoor rated effect panel, the CUEPIX 16 IP from Elation is a 4x4 array of sixteen 30W, 4-in-1 RGBA COB LEDs packed with features and efficient effect technology. This matrix boasts 62° beam, 87° field angles, and five effects modes (Full Pixel Control with Pixel Flip, RGB + Dynamic Amber Channel, Smooth Color Mixing and Internal Color, High Speed Electronic Shutter and Strobe, and 16-Bit Dimming and Variable Dimming Curve). Ideal for noise-sensitive applications and flicker-free operation such as TV and film, CUEPIX 16 IP operates fan-free and with adjustable LED refresh rate and gamma brightness.

Rigging options are versatile with the included 90° adjustable and fixed yoke brackets with 3-position mounting holes for individual fixtures or interlocking multiple panels with integrated alignment pins - 1/4 turn Omega brackets are optional (sold separately). CUEPIX 16 IP is capable of 14 DMX Channel Modes (128 channels) with DMX, RDM, Kling-NET, and Art-NET Protocol Support and a multi-voltage universal auto switching power supply (100-240v).

Versatile IP65 Outdoor Rated Effect Panel Luminaire
Five Effects Modes:
Full Pixel Control with Pixel Flip Modes
RGB + Dynamic Amber Channel Modes
Smooth Color Mixing and Internal Color Macros
High Speed Electronic Shutter and Strobe
16-Bit Dimming and Variable Dimming Curve Modes
Adjustable LED Refresh Rate Frequency and Gamma Brightness
No Fans for Noise-Sensitive Application
DMX, RDM, Kling-NET, and Art-NET Protocol Support

14 DMX Channel Modes (128 channels)
4x4 Array of 16 30W 4-in-1 RGBA COB LEDs
Adjustable Refresh Rate (900-25,000 (Hz)
Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
4 Button Control Panel / OLED Menu Display
Color: RGBA
DMX, RDM, Kling-Net and Art-Net Protocol Support
IP65 5pin DMX, RJ45 Ethernet In/Out
IP65 Power In/Out
Rigging Options:
90° Adjustable and Fixed Yoke Brackets w/3-Position Holes
Fixture-to-Fixture Interlocking Alignment Pins/Locks
Optional 1/4 Turn Omega Brackets Available (Sold Separately)
Dimensions: 17.3” x 8.1” x 17.3”
Weight: 33 lbs.

Elation Professional CUEPIX 16IP   ( Elation CUEPIX-16 IP )
