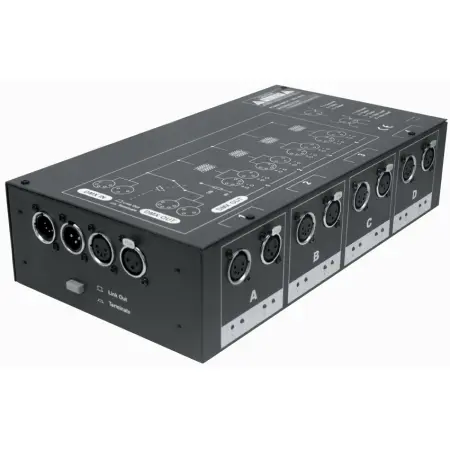

Elation Lighting DMX-Branch/4

The DMX Branch 4 is a 4 way DMX distributer.

• 4-way DMX distributor, 1 x DMX Input, 4 x DMX outputs & 1 DMX thru
• Electronic & Opto isolated
• 3 & 5 pin XLR DMX connectors
• Data + & Data – LED indicators
• Linkable with other DMX Branch x 4 units via 3 or 5 pin XLR.
• Link out/Terminate button
• 50mA internal fuse
• 3/16” Threaded hole for clamp
• Dimensions: 13” x 7.25” x 3” (330 x 184 x 76 mm)
• Weight: 7 lbs (3.18 kgs)
• Voltage: 120V
• Internal Fuse: .5A 250V 5x20mm
