The new DW Chorus™ series is available in 1 (0.3m), 2 (0.6m), 4 (1.2m), and 6 foot (1.8m) fixture lengths, featuring long life individual Lumi™ 3W LEDs, 100,000 average hour LED life*, LED group control, variable dimming curve modes, strobe and chase effects, ArtNet™, KlingNet™ and RDM (remote device management) protocol support, 3pin and 5pin DMX, powerCon, and RJ45 in/out connections, LCD menu display with 4 button control panel, integrated rigging brackets, multiple unit power linking, rugged die-cast aluminum exterior, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (110-240v).

FEATURES
ArtNet™ / Klingnet™ / RDM Protocol Support
Variable Dimming Curve Modes
Multiple Unit Power Linking
Rugged Die-Cast Aluminum Exterior
Flicker Free Operation for TV and FILM

SOURCE / PHOTOMETRIC DATA
Individual 3W Cool White / Warm White Lumi™ LEDs
100,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

DW Chorus 12™ (48) Total LEDs - 24 CW + 24 WW
30,340 LUX (2,819 FC) @3.3’ (1m) (11° FULL ON)


EFFECTS
Strobe and Chase Effects / Variable Dimming Curves

CONTROL / CONNECTIONS
Multiple DMX Channel Modes
4 Button Control Panel and LCD Menu Display
ArtNet™/ KlingNET™ / RDM Protocol Support
(2) RJ45 Ports, 3pin and 5pin DMX In/Out
powerCON Power In/Out
Multiple Unit Power Linking

SIZE / WEIGHT
DW Chrous 12™
Length: 12.4” (316mm)
Width: 7.0” (177.1mm)
Vertical Height: 8.9” (227.1mm)
Weight: 12.0 lbs. (5.4kg)

ELECTRICAL / THERMAL
AC 110-250V - 50/60Hz
DW Chorus 12™ - 120W Max Power Consumption

APPROVALS / RATINGS
CE | cETLus |IP30

INSTALLATION
Rigging: Integrated Rigging Brackets
Working Position: Any (360°)

INCLUDED ITEMS
powerCON Cable

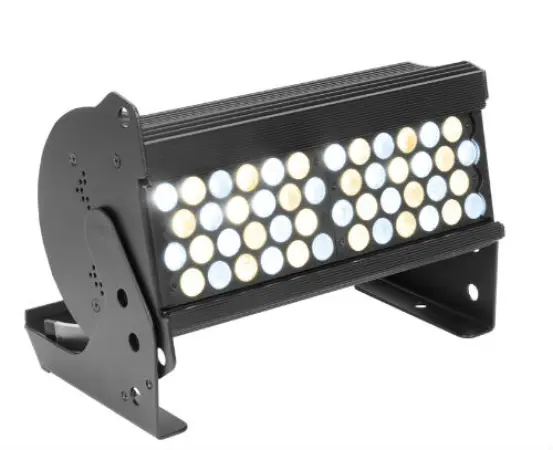

Elation Professional DW Chorus 12 (Elation DWC012)
