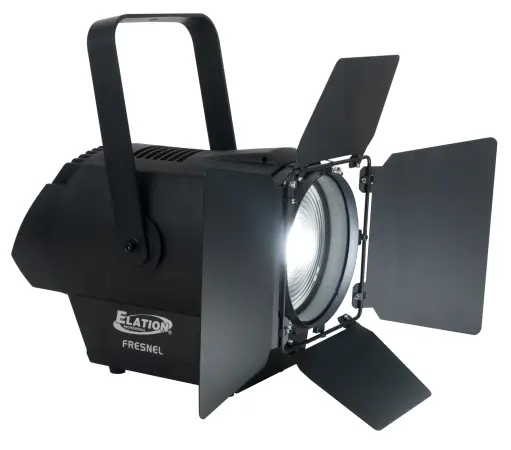

Elation DW Fresnel

Elation Lighting DW Fresnel (Elation DW Fresnel)

The new DW Fresnel™ features a 250W 100,000 hour average life dynamic LED engine, 13° to 41° manual zoom, variable color temperature settings (3,200K - 7,000K), no noise thermo-optical cooling, manual and DMX controlled strobe and dimmer, flicker free operation for TV and FILM, rotating barn door and frost filter, 3 and 5 pin in/out DMX and powerCON in connections, (4) button (3) dial control panel, 320W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).

FEATURES
13° - 41° Manual Zoom
Variable Color Temperature (3,000 - 7,000K)
No Noise Thermo-Optical Cooling Technology
Manual and DMX Controlled Color Temp and Dimming
Flicker FREE Operation for TV and FILM
Rotating Barn Door and Frost Filter

SOURCE
250W Dynamic White LED Engine
100,000 Hour Average Life

PHOTOMETRIC DATA
Lens Diameter: 7” (175mm) HIGH CRI = >90 / up to 8,716 lm
18,420 LUX 1711 FC @8.2’ (2.5M) (13° Full On 4,800K)
2,639 LUX 245 FC @8.2’ (2.5M) (41° Full On 4,800K)

EFFECTS
Variable Strobe Settings (1-18 fps)
Electronic Dimming (0% - 100%)

CONTROL / CONNECTIONS
(4) Button and (3) Dial Control Panel LCD Menu Display
Manual or DMX Controlled Color Temp and Dimming
3 DMX Channels Modes (2/3/5)

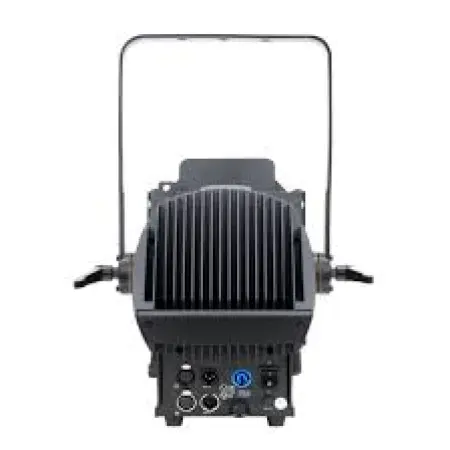

3 and 5 pin DMX In/Out
powerCON Power In

SIZE / WEIGHT
Length: 23.3” (592.2 mm)
Width: 11.2” (285.7 mm)
Height: 17.9” (453 mm)
Weight: 20.9 lbs. (9.5 kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
320W Max Power Consumption
14° to 113°F (-10° to 45°C)

APPROVALS / RATINGS
CE Approved
IP20 Rated

INSTALLATION
Rigging: Clamp or Stand (Not Included)
Working Position: Any (360°)

INCLUDED ITEMS
(1) Rotating Barn Door
(1) Frost Filter
(1) powerCON Cable
(1) 3pin XLR Cable
(1) Safety Cable
