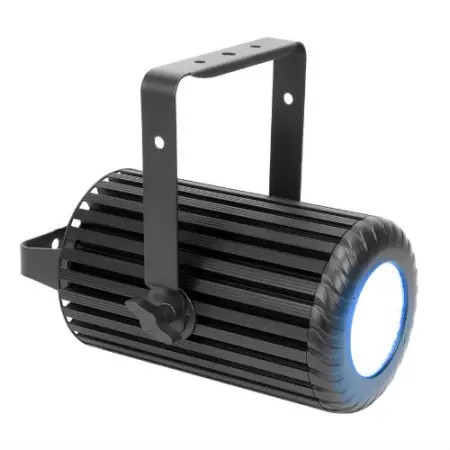

The new DW PENDANT™ wash luminaire features (36) 3W Cool White LEDs producing a 41° beam angle, convection cooled for silent operation, and flicker free operation for TV and Film. It includes selectable color temperatures of 2,900-6,800K, variable dimming curves, strobe effects, RDM (Remote Device Management), 5pin DMX in/out and powerCON input connections, an internal WiFly extended range wireless DMX transceiver, an LCD menu display with 4 button control panel, removable pendant and yoke mounting brackets, and a multi-voltage universal auto switching power supply (100-250v).
FEATURES
41° Beam Angle - 66° Field Angle
Variable Color Temperatures
Flicker FREE Operation for TV and FILM
Convection Cooled / Silent Operation
Removable Pendant and Yoke Mounting Brackets
Internal WiFly Extended Range Wireless DMX Transceiver
SOURCE
(36) 3W Cool White LEDs
100,000 Hour Average Life
PHOTOMETRIC DATA
3,785 LUX 352 FC @3.3’ (1m) (41°Full ON)
1,003 LUX 93 FC @6.6’ (2m) (41°Full ON)
457 LUX 42 FC @9.8’ (3m) (41°Full ON)
271 LUX 25 FC @13.1’ (4m) (41°Full ON)
179 LUX 17 FC @16.4’ (5m) (41°Full ON)
EFFECTS
Strobe and Variable Color Temperature (2,900-6,800K)
Dimming : 0% - 100%
Selectable Dimming Curves
CONTROL / CONNECTIONS
4 DMX Channel Modes (1 / 2 / 3 / 4)

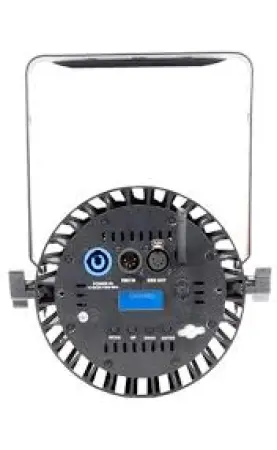

4 Button Control Panel and LCD Menu Display
5pin DMX In/Out
RDM (Remote Device Management)
powerCON Power In
SIZE / WEIGHT
Length: 14.7” (374 mm)
Width: 9.9” (252.5 mm)
Horizontal Height: 12.0” (308.8 mm)
Weight: 12.8 lbs. (5.8 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
125W Max Power Consumption
-14°F to 113°F (-10°C to 45°C)
APPROVALS / RATINGS
CE | IP20
INSTALLATION
Rigging: Integrated Yoke + Pendant Mounting Brackets
Working Position: Any (360°)
INCLUDED ACCESSORIES
(1) powerCON Cable
Elation Professional DW Pendant
(Elation DWP001)
