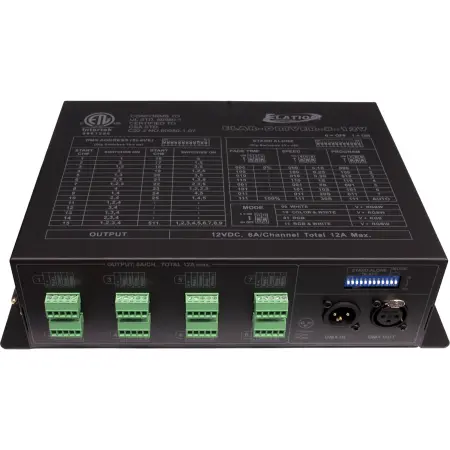

ELAR Driver-812V

LED Driver constant voltage for 12V

SPECIFICATIONS
• Universal DMX LED Controller: 12V
• 12 position dipswitch for function set up
• USITT DMX512 (1990) compatible
• DMX and Stand Alone operation modes
• 0- 100% Stand Alone Fade Time setting
• 0.1S – 30S Stand Alone Chase Speed setting
• 7 built in programs
• Power Output Options: 8 terminal outputs in two different models
* 12VDC, 6A/CH, Total 12A Max.
* 24VDC, 6A/CH, Total 6A Max.
• DMX Output Operation Modes: Pure White (Intensity) (One DMX Channel)
Color with white saturation (Two DMX Channels)
* RGB (Three DMX Channels)
* RGBW (Four DMX Channels)
• Power Input: Voltage Selector Includes:
* 110- 120VAC (3.2A)
* 220- 240VAC (1.6A) 50/60Hz
• Power Failure Memory
• DMX Input: 3-Pin XLR male connector
• DMX Output: 3- Pin XLR female connector
• Dimensions: 11.26” x 7.51” x 2.91” (286mm x 191mm x 74mm)
• Weight: 6.6 lbs. (3kg)
• Operation Temperature: -10 degC to +50 degC
• Storage Temperature: - 20 degC to +70 degC
• cETLus approved

Elation Lighting ELAR Driver 8 (Elation ELAR Driver-812V)
