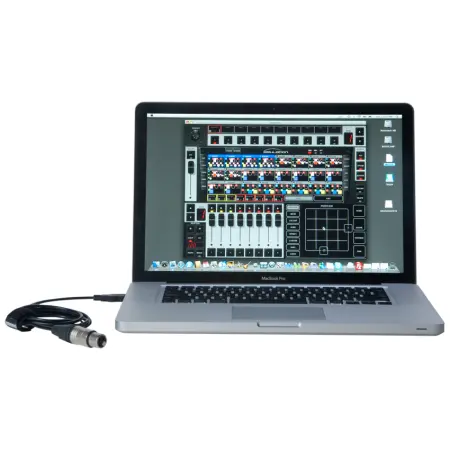

Elation Emulation

EmuLATION Control Software
• Multi-Platform
• DMX512A + Art-net
• Industry-Standard Cuelists
• MIDI Control Surfaces
• 100% Touch Screen Compatible
• 1500+ Personality Files
• iPHONE Riggers Remote
• Multi-language
• Clipboard & Undo
• Globals
• Forum

Multi-Platform
You can use Emulation on your preferred platform; it is available on Mac OS X and Windows XP, Vista & Windows 7.

DMX512A + Art-net:
Emulation software is shipped with a USB to DMX interface. The interface sends out 512 channels through a ESD protected DMX512-A port. Once the hardware interface is plugged in your computer the DMX data is duplicated over Art-Net. This is also useful for connecting to 3rd party visualizers.

Industry-standard cuelist system:
The cuelist system in Emulation, used for programming light sequences, is analog to the systems used on larger lighting consoles. It features separate Delay, Fade in & Fade out timing and comes with a shape generator and programmer window.

Minimal System Requirements:

Mac OS X:• Apple Mac OS X Leopard (10.5 or higher)
• Intel CPU 1 GHz or equivalent
• XGA 1024x768
• 512 MB RAM Memory
• 50MB Disk Space

Windows:• Microsoft Windows Vista, XP or Windows 7
• 32 & 64 bit drivers
• XGA 1024x768
• 512 MB RAM Memory
• 30 MB Disk Space

Linux:• Ubuntu 8.04 or higher
• XGA 1024x768
• 512 MB RAM Memory
• 30MB Disk Space

Other Specifications:• Multi-core CPU optimized software engine that runs at 33Hz
• Maximum 48 Individual fixtures, plus 10 sub fixtures each (e.g. 10 [3ch] RGB led fixtures can be regarded as 1 fixture)
• Unlimited Groups and Sub-masters
• 64 Playback Faders + 64 Playback Buttons
• USB Joystick support
