Elation EPT9IP (Elation Modular LED Panels)

Part of the Ept Series

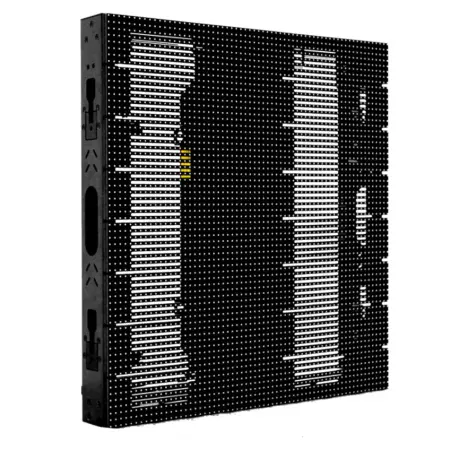

Elation Professional introduces it’s new 9mm pixel pitch modular outdoor rated Pro Touring LED display… the EPT9IP LED Screen. It’s light weight durable die-cast aluminum frame, patented rapid NTR-LoK™ (No Tool Required Lock) compression pins, and (5) fixed curve rigging options (-15°,-7.5°,0°,7.5°,15°), allows for easy installation of captivating and seamless curved shaped designs including full circle, convex, and concave displays. Elation EPT9IP modular LED panels use the latest dot correction technology which provides full color uniformity and brightness. The Elation EPT9IP LED Screen is ideal for outdoor Pro Touring portable or permanent installations.

Elation EPT9IP Modular LED Panel Features:
9mm Pixel Pitch / 64(H) x 64(V) Resolution
Modular Outdoor Rated (full IP65 front and back)
Light Weight Die-Cast Aluminum Frame (23 lbs. / 10.5kg)
Patented Rapid NTR-LoK™ Compression Pins
Fixed Curve Rigging Options (-15°, -7.5°, 0°, 7.5°, 15°)
Full Circle, Convex, and Concave Display Designs
Dot Correction Technology
Easy To Remove/Replace Power Supply Module

Elation EPT9IP TECHNICAL Specifications:
Panel
Resolution / Pixel Pitch: 64(H) × 64(V) / 9mm (0.35”)
LED Configuration: 3-IN-1 SMD 3535 LED
Pixel Density: 12,346 pixels/m²
Size: 22.7” x 22.7” x 4.6” (576 × 576 × 118mm)
Module Quantity: 4
Weight: 23lbs. (10.5Kg)

Mechanical Ratings
Surface Flatness: Gap=0.5mm

Optical Ratings
Brightness: =5000 cd/m²
View Angle / Distance: 140°/140° / =30ft (9m)
Gray Scale / Display Color: 8bit input, Correction with 16bits / 16.7M
Transparent Ratio: 15% Dual Mode Shifter Built-In
Brightness Adjustment: 0~100% 100 Levels

Power Supply
Operation Power: 100~240V 50-60Hz
Power Consumption: Max = 600 w/m² - Average = 200 w/m²
Panel Power Consumption: Max = 200 w/per panel - Average = 70 w/per panel

Control System
Control Mode: Synchronous Display with Control PC by DVI
Frame Update Frequency: 50-75Hz
Scan Mode / Refresh Rate: 1/4 Duty / 2000Hz
Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
Control Distance: Ethernet Cable =120m or Fiber Optic~120m
Support VGA Mode: 1024×768, 1280×1024, 1600×1200, 1920×1280
Brightness Correction: Pixel, Module, Cabinet

Environmental
Operating Temp / Humidity: -10°~+50° / 10~90% RH No Condensation
Operating Life / MTBF: 100,000 Hours / 5000 Hours
Protection Level: IP65 (Front and Back)
Out of Control Rate: =0.02%
