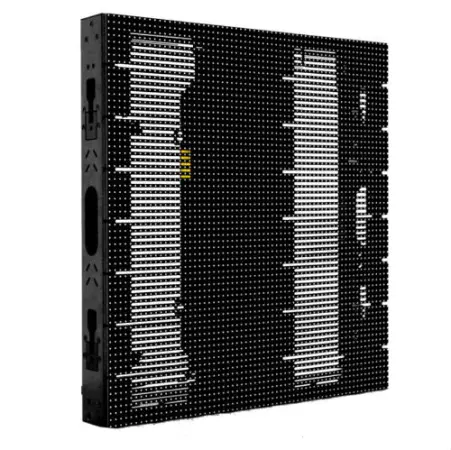

Elation EPT9IP

Part of the Ept Series

Elation Professional introduces it’s new 9mm pixel pitch modular outdoor rated Pro Touring LED display… the EPT9IP™ LED Screen. It’s light weight durable die-cast aluminum frame, patented rapid NTR-LoK™ (No Tool Required Lock) compression pins, and (5) fixed curve rigging options (-15°,-7.5°,0°,7.5°,15°), allows for easy installation of captivating and seamless curved shaped designs including full circle, convex, and concave displays. The EPT9IP™ uses the latest dot correction technology which provides full color uniformity and brightness. The EPT9IP™ is ideal for outdoor Pro Touring portable installations.

FEATURES
9mm Pixel Pitch / 64(H) x 64(V) Resolution
Modular Outdoor Rated (full IP65 front and back)
Light Weight Die-Cast Aluminum Frame (23 lbs. / 10.5kg)
Patented Rapid NTR-LoK™ Compression Pins
Fixed Curve Rigging Options (-15°, -7.5°, 0°, 7.5°, 15°)
Full Circle, Convex, and Concave Display Designs
Dot Correction Technology
Easy To Remove/Replace Power Supply Module

TECHNICAL SPECIFICATIONS
Panel
Resolution / Pixel Pitch: 64(H) × 64(V) / 9mm (0.35”)
LED Configuration: 3-IN-1 SMD 3535 LED
Pixel Density: 12,346 pixels/m²
Size: 22.7” x 22.7” x 4.6” (576 × 576 × 118mm)
Module Quantity: 4
Weight: 23lbs. (10.5Kg)

Mechanical Ratings
Surface Flatness: Gap=0.5mm

Optical Ratings
Brightness: =5000 cd/m²
View Angle / Distance: 140°/140° / =30ft (9m)
Gray Scale / Display Color: 8bit input, Correction with 16bits / 16.7M
Transparent Ratio: 15% Dual Mode Shifter Built-In
Brightness Adjustment: 0~100% 100 Levels

Power Supply
Operation Power: 100~240V 50-60Hz
Power Consumption: Max = 600 w/m² - Average = 200 w/m²
Panel Power Consumption: Max = 200 w/per panel - Average = 70 w/per panel

Control System
Control Mode: Synchronous Display with Control PC by DVI
Frame Update Frequency: 50-75Hz
Scan Mode / Refresh Rate: 1/4 Duty / 2000Hz
Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
Control Distance: Ethernet Cable =120m or Fiber Optic~120m
Support VGA Mode: 1024×768, 1280×1024, 1600×1200, 1920×1280
Brightness Correction: Pixel, Module, Cabinet

Environmental
Operating Temp / Humidity: -10°~+50° / 10~90% RH No Condensation
Operating Life / MTBF: 100,000 Hours / 5000 Hours
Protection Level: IP65 (Front and Back)
Out of Control Rate: =0.02%

Elation Professional EPT9IP (Elation EPT423)
