Elation Flex LED Tape Series
Flex A WP

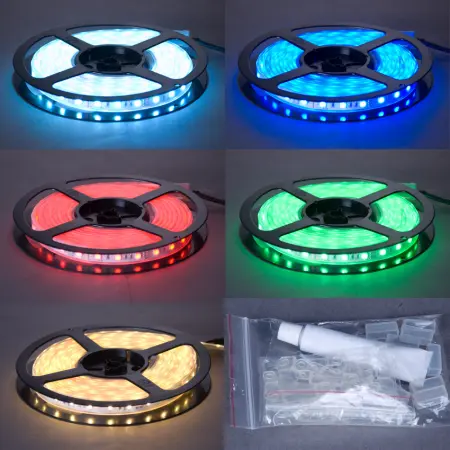

ELATION FLEXLED TAPE is a very thin and flexible LED circuit strip mounted inside a silicone water proof sleeve. It can be cut every 2” and put back together using simple soldering techniques and silcone seal kit. It comes available in RGB and White Color versions. High output, low heat and easy installation make this product the ideal product for a variety of applications.
FLEX SINGLE COLOR DETAILS:
• FLEX WW WP: 20’ Warm white Flex tape roll
• FLEX CW WP: 20’ Cool white Flex tape roll
• FLEX A WP: 20’ Amber LED light strip
POWER SUPPLIES:
• FLEX PSU4A (DC-12V – 4AMP – 48w)
• 1 X FLEX RBG tape• 1 X FLEX Single color tape
• S-150-12 (DC-12V – 12.5AMP – 150w)
• 3 X FLEX RBG tape • 6 X FLEX Single color tape
(Connections must be Parallel - you cannot link tapes together - home run to each tape)
• Elar-Driver 1 - DMX driver/dimmer - can run 1 flex RGB LED strip per PSU required • X-Dimmer 1 - DMX driver/dimmer - can run 1 Flex single color tape per psu required• Elar-Driver 8 12V - DMX driver/dimmer - can run 3 Flex RGB LED strip total
ACCESSORIES:
• FLEX CLIP KIT - 20 mounting clips for WP flex tape
• FLEX CLIP IP KIT - end caps connectors and silicone glue with clips
SPECIFICATIONS:
• Avg. Rated Life – 30,000hrs• LED Spacing – 16.6mm (.65”)
• Dimensions – 11.5mm (.45”) W x .15mm (.005”) D
• Operating Temperature - -40°c to 80°c
• Tape adhesive temperatures - -30°c to 90°c
• Total power consumption of the FLEX RGB tape is 26 watts at full power for 10' roll
• Total power consumption of the FLEX Single color is 28.8 watts for 20' roll
• cETLus approved
