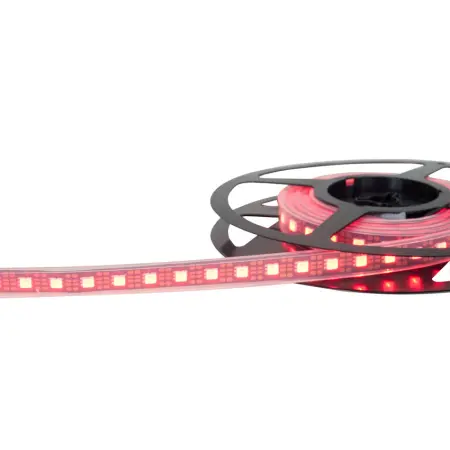

The new FLEX PIXEL WP-14™ is an ETL listed 6.6 ft (2m) roll of flexible LED pixel tape featuring (144) RGB SMD LED pixels, a total of (432) DMX channels, spaced on 0.55” (14mm) centers, enclosed in an IP65 rated flexible cover, 29W max power consumption, powered by an optional 5VDC universal auto switching power supply (110-240v).

FEATURES
Flexible IP65 Rated LED Pixel Tape
Over 1 Billion Color Possibilities
Bright Output Low Wattage Consumption

SOURCE
(144) RGB SMD LED Pixels

PHOTOMETRIC DATA
1,008 LUX 94 FC (per each 1m)

CONTROL / CONNECTIONS
(432) DMX Channels

SIZE / WEIGHT
Length: 6.6’ (2m) Roll
Width: 0.57” (14.5mm)
Vertical Height: 0.18” (4.5mm)
Weight: 10 oz. (0.3 kg)

ELECTRICAL / THERMAL
DC 5V
29W Max Power Consumption

APPROVALS / RATINGS
CE | cETLus | IP65

Elation Professional Flex Pixel WP 14 (Elation FLX775)
