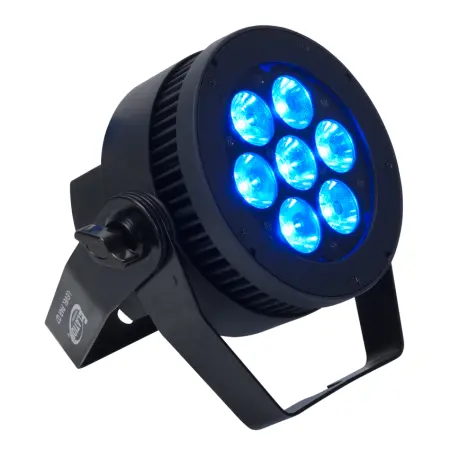

Elation Lighting Level Par Q7

The new LEVEL PAR Q 7 features (7) 15W Quad Color RGBW LEDs, color mixing, rainbow effect, a 7° to 13° field angle range, 8 auto program chase effects, 5-pin DMX connections, and an LED menu display with 4 button control panel.

FEATURES

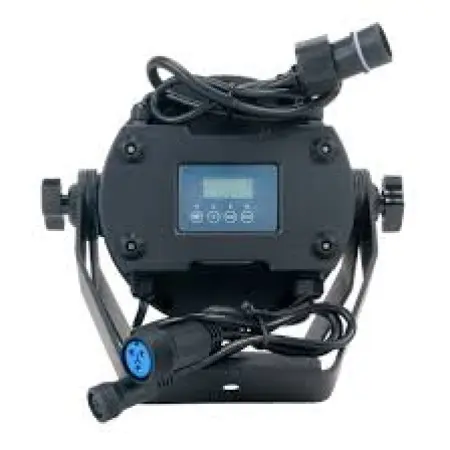

4 Button Control Panel
8 Auto Program Chase Macros
Gel Frame & Holder Kit Included
Software Upload via Optional External DMX Accessary

SOURCE
(7) 15W RGBW QUAD COLOR LEDs
100,000 Hours Average Life

PHOTOMETRICS
Max 3,636 LUX @5M
7° to 13° Field Angle Range

EFFECTS
Pulse Effect
Color Mixing
Rainbow Effect
Strobe: 1 – 18 Flashes Per Second
Dimming: 0% - 100% + Blackout for All Four Colors

CONTROL / CONNECTIONS
4 DMX Channel Modes (4/5/7/9)
5pin DMX In/Out
powerCON Power In/Out

SIZE / WEIGHT
Length: 11” (278.6mm)
Width: 5.6” (140.5mm)
Vertical Height: 10.2” (260mm)
Weight: 8.9 lbs. (4kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
-10°C/14°F to 45°C/113°F

APPROVALS / RATINGS
CE Pending
cETLus Pending

OPTIONAL GEL FRAME HOLDER KIT - SKU# LEV054-GFH
