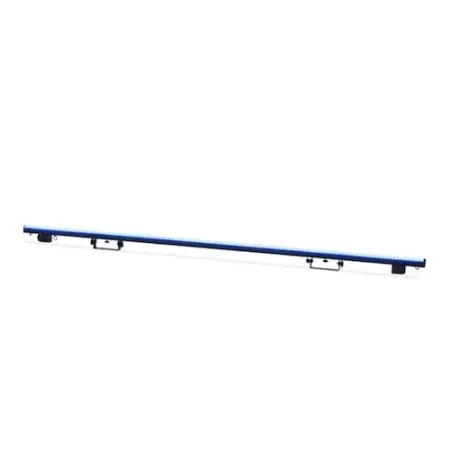

The PIXEL BAR 120IP™ is an outdoor IP65 rated LED pixel bar featuring (120) tri-color RGB SMD LEDs with a 16mm pixel pitch, a 120 beam angle, a refresh rate of 44,000Hz for flicker free operation for broadcast TV and FILM applications, and measures 2 meter (6.6 feet) in length. Each pixel bar is housed in a lightweight IP65 rated aluminum housing featuring magnetic end caps which allow seamless end-to-end pixel spacing, an integrated adjustable mounting bracket, a safety cable loop, and includes square and rounded frosted lens attachments.
Easy and versatile control options are handled by the Pixel Driver 4000™ (sold separately) which provides simple on-board manual dimming and strobe control, and full pixel mapping control of 4,080 max pixels via Kling-Net and 680 max pixels via Art-Net and sACN (streaming ACN) protocols. Power and data are supplied via proprietary IP rated 4pin combo cables (sold separately) which are available in lengths from 2 to 50 meters.
Features:
Outdoor IP65 Rated
(120) RGB SMD LEDs | 2 meter / 6.6 feet
16mm Pixel Pitch | 120° Angle | 44,000Hz PWM
Flicker Free Operation for Broadcast TV and FILM
Magnetic End Caps - Seamless End-to-End Spacing
Integrated Adjustable Mounting Brackets (x2)
Square and Rounded Frosted Lens Included
Pixel Driver 4000™ Controller (sold separately)
Manual Dimming and Strobe Control
Full Pixel Mapping Control
4,080 Pixels via Kling-Net
680 Pixels via Art-Net and sACN (streaming ACN)
Elation Professional
Pixelbar 120ip
(
Elation
PIX253
)
