The Pixel Bar™ 40 features 3-in-1 SMD LEDs producing a 25mm pixel pitch, 16.7 million colors with 8 bits per color, 850 NITs, 2000Hz refresh rate, DC24V, (2) RJ45 CAT5e ports (input/output) connections, flicker free operation for broadcast TV and FILM, multiple unit linkable, extruded aluminum housing, and integrated adjustable mounting brackets/clamps.

FEATURES
25mm Pixel Pitch
850 NITs / 2000Hz Refresh Rate
Extruded Aluminum Housing

SOURCE / PHOTOMETRIC DATA
Pixel Bar 40™ (40) 3-in-1 SMD LEDs

COLOR
16.7 Million Colors / 8 Bits Per Color

CONTROL / CONNECTIONS

Pixel Bar 40™ - 120 DMX Channels
Multiple Unit Linkable (16 units per PIXEL NET 4™ device)

(1) RJ45 CAT5e Input / Output (All Models)

SIZE / WEIGHT
Pixel Bar 40™
Length: 39.4” (1000mm)
Width: 1.5” (38.2mm)
Vertical Height: 3.6” (92.6mm)
Weight: 5.5 lbs. (2.5kg)

ELECTRICAL / THERMAL
Pixel Bar 40™ 16W Max Power Consumption
32°F to 104°F (0°C to 40°C)

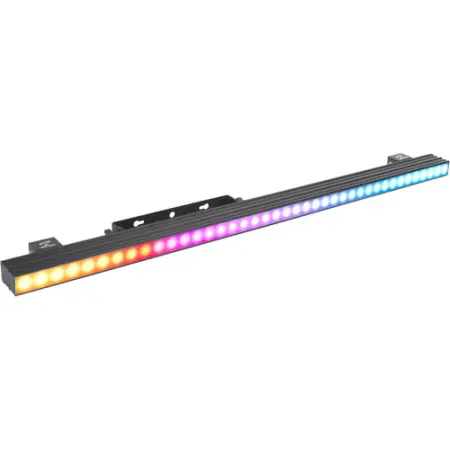

Elation Professional PIXELBAR 40 (Elation PIX001)
