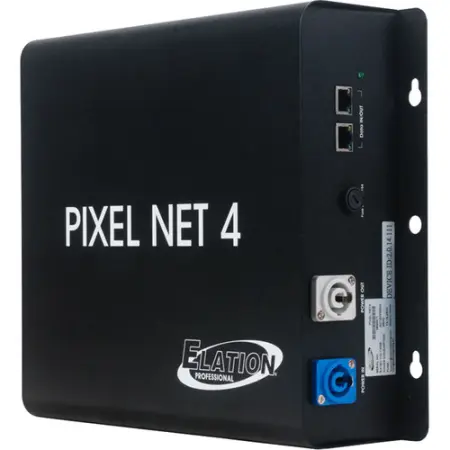

The Pixel Net 4™ is an ArtNet to DMX driver and is compatible with all of Elation's Pixel Bar™ products, includes ArtNet CAT5 input/output, supports up to (4) DMX universes, (4) RJ45 CAT5e outputs, 350W max power consumption, and a 90-120V 60Hz power supply.

FEATURES
ArtNet to DMX Driver
(4) DMX Universes

CONTROL / CONNECTIONS
(1) RJ45 CAT5 ArtNet Input
(1) RJ45 CAT5 ArtNet Output
(4) RJ45 CAT5e Outputs
powerCON In/Out
Multiple Unit Linkable: 6 units @120V

SIZE / WEIGHT
Length: 12.2” (310mm)
Width: 10.0” (255mm)
Vertical Height: 3.4” (86.2mm)
Weight: 8.0 lbs. (3.6kg)

ELECTRICAL / THERMAL
AC 90-120V 60Hz
350W Max Power Consumption
32°F to 104°F (0°C to 40°C)

APPROVALS / RATINGS
CE |

Elation Professional Pixelnet 4 (Elation PIX013)
