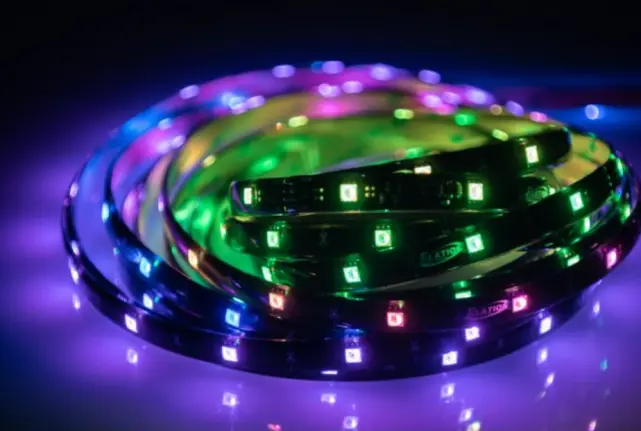

The Pixel Tape 40IP is an outdoor rated 22.3 foot (6.8m) flexible LED pixel tape featuring (170) RGB SMD tri-color LED pixels (510 total DMX channels) spaced on 1.6” (40mm) centers, producing over 1 billion color possibilities with a 120° viewing angle and is surface coated with an IP65 conformal coating. Pixel Tape 40IP's can be powered and controlled using our Pixel Driver, 170, Pixel Driver 1000IP or Pixel Driver 4000 V2 control drivers.

IP65 Outdoor Rated Flexible LED Pixel Tape
22.3 foot (6.8m) Roll
(170) RGB Tri-Color SMD LED Pixels
(510) Total DMX Channels
Pixels Spaced on 1.57” (40mm) Centers
Cut and Extend Every 2.44” (62mm)
120° Viewing Angle
475 Lumens
Over 1 Billion Color Possibilities

Specifications
SOURCE
(170) RGB SMD LED Pixels
40mm Pixel Pitch

PHOTOMETRIC OUTPUT
475 Lumens

COLOR
Over 1 Billion Color Possibilities

CONTROL
(510) DMX Channels
3 Tapes Max Link (Same DMX Universe)
ICS APA102 Protocol

SIZE / WEIGHT
Length: 22.3 foot (6.8m) Roll
Width: 0.57” (14.5mm)
Vertical Height: 0.125" (3.2mm)
Weight: Under 1 lb. (0.35kg)

ELECTRICAL / THERMAL
DC 24V
35W Max Power Consumption

APPROVALS / RATINGS
CE
cETLus (PENDING)
IP65

ADJ Pixel Tape 40 IP (Elation PixelTape-40 IP)
