Elation Platinum Spot 35 Pro

$6,599.99 new
CALL or VIP REGISTRATION (free) new
Warranty



Available - Ships in 1-2 days Low Price Guarantee



or $600/mo Free Shipping, No Tax (except NJ)


User Reviews

Please log-in to write your review

read all reviews
Product Description

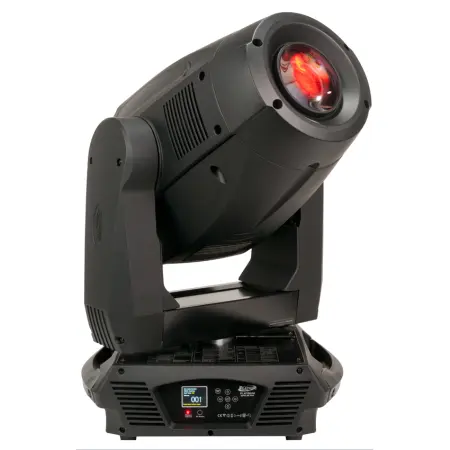

Elation Lighting Platinum Spot 35 Pro

The new Platinum Spot35 PRO features the MSR Platinum 35, 800-watt lamp from Phillips™, 16-bit resolution on all motor functions, 2 gobo wheels with a total of 12 interchangeable glass rotating / indexing gobos, variable CMY & CTO color mixing, a static dichroic color wheel with 8 interchangeable colors (including UV), 3 facet rotating / indexing prism, frost filter, motorized focus / zoom system with an 8° to 50° range, rotating / indexing animation wheel effect, pan/tilt lock, built-in EWDMX wireless DMX receiver, 3 & 5pin DMX connections, full color 180° reversible menu display with 6 button touch control panel, battery backup for display power, and a multi-voltage universal auto switching power supply (100-240v).

FEATURES
540°/630° Pan
245° Tilt
Pan/Tilt Lock
8 / 16 Bit Resolution Adjustable Movement
Motorized Focus
7 Auto Program Macros
6 Button Touch Control Panel
Full Color 180° Reversible Menu Display
EWDMX Wireless DMX Receiver
Microphone for Sound Activated Programs
Rechargeable Backup Battery for Menu Display
Stand Alone Operation with Master/Slave Function
Software Upload via Optional External DMX Accessary

LAMP
Philips 800-Watt MSR PLATINUM 35
55,000 Lumen, 7,800k, >75 CRI, 750 Hour Average Life

PHOTOMETRICS
Max 76,880 LUX @5M 8° Min Zoom
Max 2,725 LUX @5M 50° Max Zoom

EFFECTS
Frost Filter
Animation Wheel Effect
Motorized Iris: 5% - 100%
Two Direction Rainbow Effect
Mechanical Dimming: 0% - 100%
High Speed Mechanical Shutter / Strobe
3 Facet Rotating Prisms with 16 Prism Macros

COLOR
Variable CMY & CTO
8 Static Dichroic Colors Including UV + White (Open)

GOBOS
2 Gobo Wheels With 12 Total Interchangeable Glass Rotating / Indexing Gobos
Size: OD 29mm / ID 24mm

CONTROL / CONNECTIONS
3 DMX Channel Modes (27 / 29 / 41)
3pin & 5pin DMX In/Out
powerCON Power In

SIZE / WEIGHT
Length: 19.9” (506.5mm)
Width: 17.6” (447.3mm)
Vertical Height: 28.6” (726.5mm)
Weight: 79 lbs. (36kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
1200W Max Power Consumption
-13°F to 113°F (-25°C to 45°C)

APPROVALS / RATINGS
CE Pending
cETLus Pending
IP20 Rated
