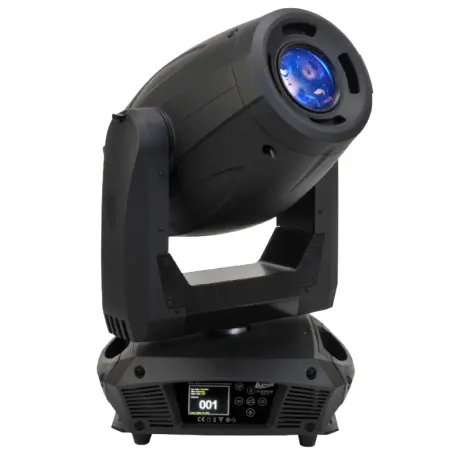

Elation Platinum Spot III

The Platinum Spot LED III™ features a new 230W 8,500K >79CRI Cool White LED engine, delivering total 7,200 lumens, 16° to 32° zoom, 8 dichroic colors, 7 rotating-interchangeable glass and 7 static-stamped metal gobos, a bi-directional variable speed animation wheel, 3-facet rotating prism, frost filter, motorized iris and focus, variable dimming curves, high speed mechanical shutter and strobe, hibernation mode, 3 and 5pin DMX in/out connections, RDM (Remote Device Management), full color 180° reversible menu display with 6 button touch control panel, battery backup for display power, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (100-240v).

FEATURES
Cool White LED Spot Luminaire
230W, 8,500K, >79CRI, 7,200 Lumen, 60,000 Hours
16° to 32° Motorized Zoom, 8 Dichroic Colors
7 Rotating-Interchangeable and 7 Static-Stamped Gobos
Bi-Directional Variable Speed Animation Wheel
3-Facet Rotating Prism and Frost Filter
High Speed Mechanical Shutter and Strobe
Motorized Iris and Focus and Variable Dimming Curves
Low Heat, Quiet Operation, Hibernation Mode
Flicker Free Operation For Broadcast TV and FILM

SOURCE
230W Cool White LED Engine
60,000 Hour Average LED Life

PHOTOMETRIC DATA
8,500K, >79CRI, >7,200 Lumens
17,500 LUX 1,626 FC @8.2’ (2.5m) (16° Full ON)
5,373 LUX 499 FC @8.2’ (2.5m) (32° Full ON)

EFFECTS
16° - 32° Motorized Zoom
Bi-Directional Variable Speed Animation Wheel
3-Facet Rotating Prism and Prism Macros
Frost Filter Hybrid Wash Effect
Motorized Zoom, Iris and Focus
High Speed Mechanical Shutter and Strobe
Variable Dimming Curves

COLOR
8 Dichroic Colors

GOBOS
7 Interchangeable-Rotating / Indexing Glass Gobos
7 Static-Stamped Metal Gobos

CONTROL / CONNECTIONS
(3) DMX Channel Modes (18 / 20 / 27)
RDM (Remote Device Management)
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
3pin & 5pin DMX In/Out

SIZE / WEIGHT
Length: 14.8” (375mm)
Width: 15.1” (384mm)
Vertical Height: 23.7” (601mm)
Weight: 46 lbs. (20.8 kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
350W Max Power Consumption
-13°F to 113°F (-25°C to 45°C)

APPROVALS / RATINGS
CE | RoHs Compliant | IP20

INSTALLATION
Rigging: Clamps (Not Included)
Working Position: Flat Surface / Inverted (180°)

Elation Platinum Spot 3 (Elation Platinum Spot LED III)
